Figure 2a from Haywired Volume 3 – Societal Consequences

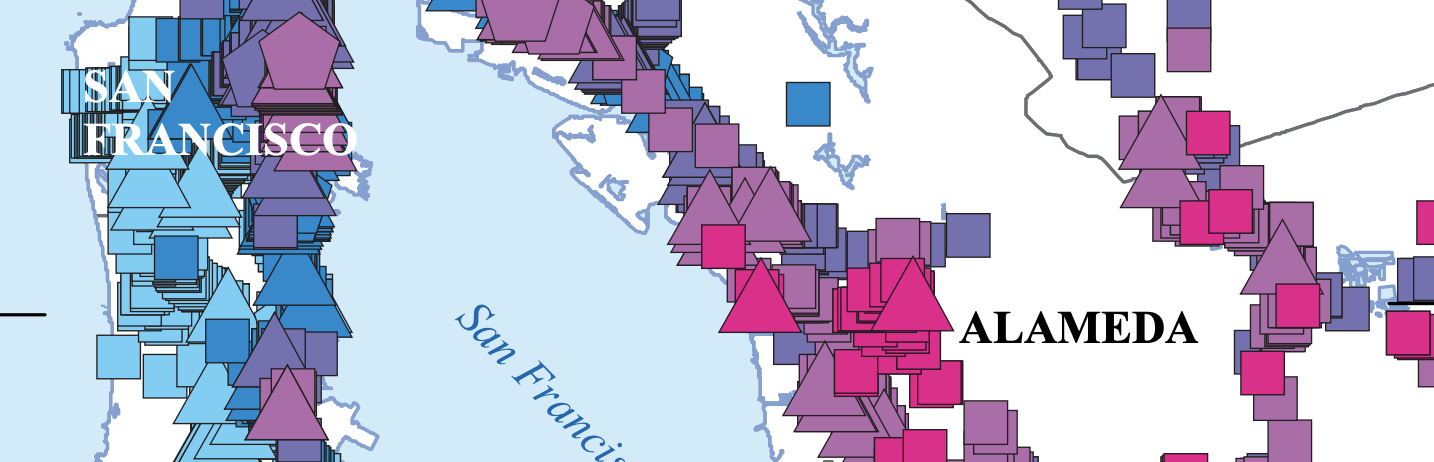

Figure 2a from Haywired Volume 3 – Societal Consequences: Maps of the San Francisco Bay region, California, showing exposure of lifeline infrastructure collocations to multi-hazards. Three examples are: A, Collocations for all lifeline infrastructure systems, showing points with four or more collocated lifelines.
