Multi-echo ATV Data

Single trace of sample multi-echo ATV.

Detailed Description

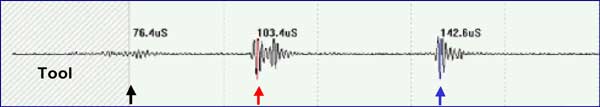

Plot of single trace of sample multi-echo acoustic televiewer data. Horizontal (x) axis is travel time in microseconds of the reflected signal and the vertical (y) axis is the amplitude of the reflected signal.
