Topographic profile across Reelfoot trench site

cross-section of sackengun on Reelfoot fault

Detailed Description

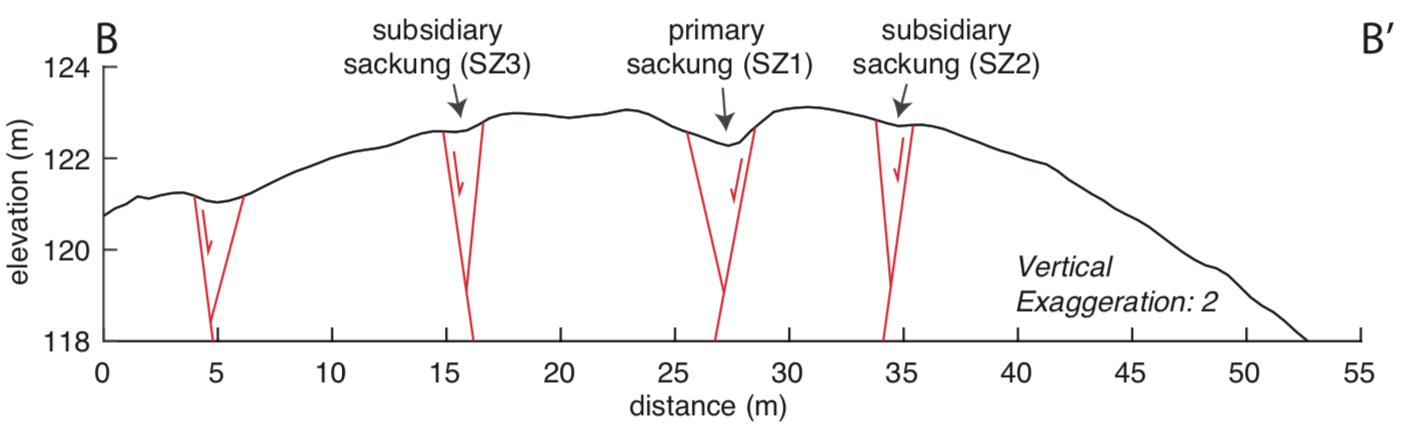

Topographic profile across the Reelfoot fault trench site, showing the morphology of the sackungen intersected by the trench. Schematic illustration of shears in the subsurface indicated by red lines.

Details

Image Dimensions: 1414 x 440

Location Taken: US

Credits

Gold, Ryan D., Christopher B. DuRoss, Jaime E. Delano, Randall W. Jibson, Richard W. Briggs, Shannon A. Mahan, Robert A. Williams, D. Reide Corbett

Source:

Four Major Holocene Earthquakes on the Reelfoot Fault Recorded by Sackungen in the New Madrid Seismic Zone, USA
Gold, Ryan D., Christopher B. DuRoss, Jaime E. Delano, Randall W. Jibson, Richard W. Briggs, Shannon A. Mahan, Robert A. Williams, D. Reide Corbett. 2019, Four Major Holocene Earthquakes on the Reelfoot Fault Recorded by Sackungen in the New Madrid Seismic Zone, USA, J. Geophys. Res.
