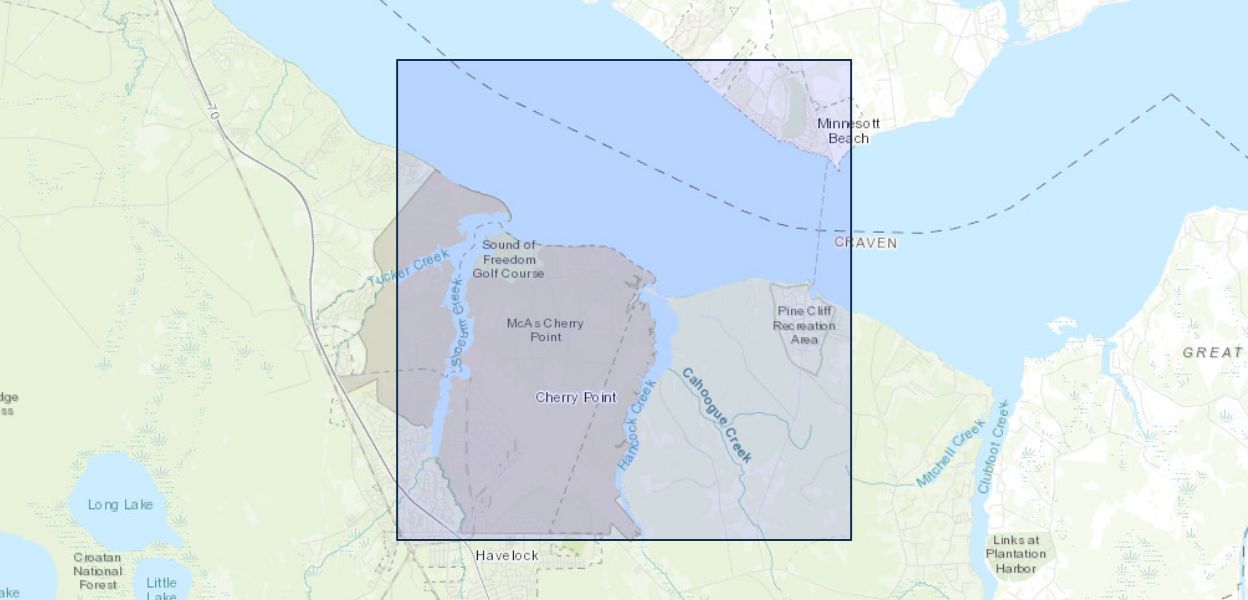

A continuous seismic-reflection profiling survey was conducted by the U.S. Geological Survey on the Neuse River near the Cherry Point Marine Corps Air Station during July 7-24, 1998. Approximately 52 miles of profiling data were collected during the survey from areas northwest of the Air Station to Flanner Beach and southeast to Cherry Point. Positioning of the seismic lines was done by using an integrated navigational system.
Data from the survey were used to define and delineate paleochannel alignments under the Neuse River near the Air Station. These data also were correlated with existing surface and borehole geophysical data, including vertical seismic-profiling velocity data collected in 1995.
Sediments believed to be Quaternary in age were identified at varying depths on the seismic sections as undifferentiated reflectors and lack the lateral continuity of underlying reflectors believed to represent older sediments of Tertiary age. The sediments of possible Quaternary age thicken to the southeast.
Paleochannels of Quaternary age and varying depths were identified beneath the Neuse River estuary. These paleochannels range in width from 870 feet to about 6,900 feet. Two zones of buried paleochannels were identified in the continuous seismic-reflection profiling data. The eastern paleochannel zone includes two large superimposed channel features identified during this study and in re-interpreted 1995 land seismic-reflection data. The second paleochannel zone, located west of the first paleochannel zone, contains several small paleochannels near the central and south shore of the Neuse River estuary between Slocum Creek and Flanner Beach. This second zone of channel features may be continuous with those mapped by the U.S. Geological Survey in 1995 using land seismic-reflection data on the southern end of the Air Station.
Most of the channels were mapped at the Quaternary-Tertiary sediment boundary. These channels appear to have been cut into the older sediments and deepen in a southerly or downgradient direction. If these paleochannels continue beneath the Marine Corps Air Station and are filled with permeable sediment, they may act as conduits for ground-water flow or movement of contaminants between the surficial and underlying freshwater aquifers where confining units are breached.
|Title||Application of continuous seismic-reflection techniques to delineate paleochannels beneath the Neuse River at U.S. Marine Corps Air Station, Cherry Point, North Carolina|
|Authors||Alex P. Cardinell|
|Publication Subtype||USGS Numbered Series|
|Series Title||Water-Resources Investigations Report|
|Record Source||USGS Publications Warehouse|
