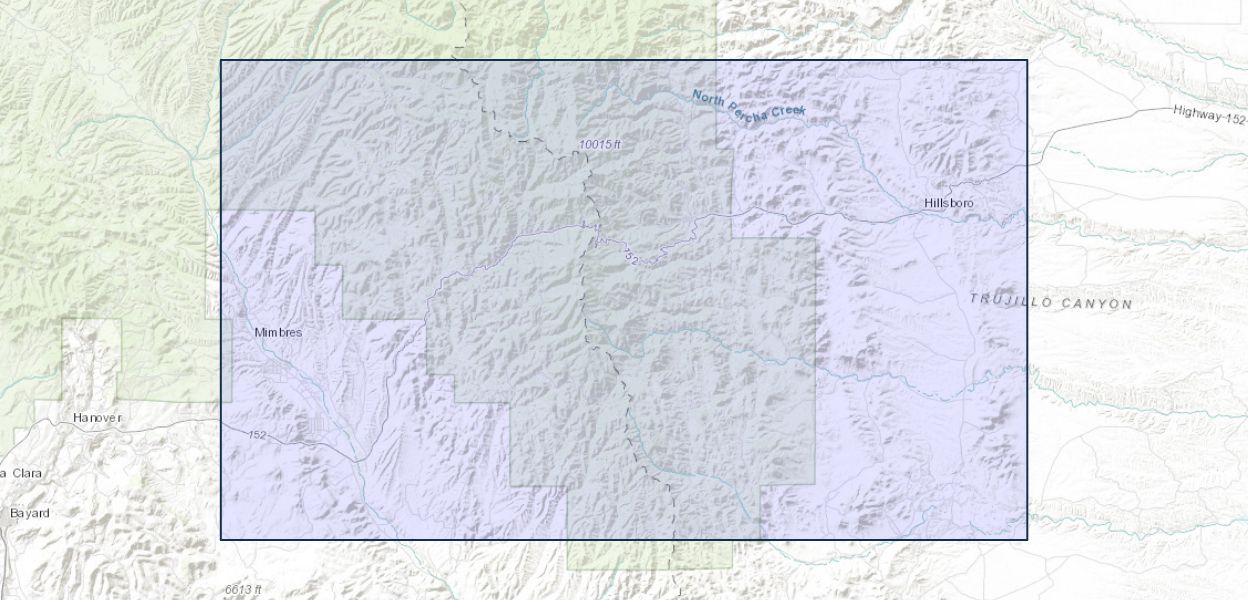

The Hillsboro and San Lorenzo 15-minute quadrangles of southwestern New Mexico have been mapped at a 1:48,000 scale and selected mineralized areas within these quadrangles have been mapped in greater detail. This area of about 550 mi2 (1,424 km2) is within the southern part of the Black Range and includes much of the Mimbres Mountains and parts of the adjoining Black Range Primitive area. The region is highly mineralized with Laramide (75.1 ? 2.5 m.y.) and middle Tertiary (about 32 to 35 m.y.) intrusions providing the source for much of the base- and precious-metal mineralization. The porphyry copper deposit at Copper Flat is a subvolcanic Laramide quartz monzonite stock that was intruded into a thick section (>2,700 ft or >823 m) of Upper Cretaceous andesite. Numerous gold-bearing veins radiate from the central quartz monzonite stock, and locally offset a radial system of quartz latite dikes. Gold-bearing veins, chiefly along the south and east periphery of the stock, have provided the source for both gold lode and placer deposits. The middle Tertiary rhyolitic plugs, stocks, and dikes have intruded a dominantly carbonate section of Paleozoic sediments and bedding replacement deposits of zinc, lead, and copper are closely associated with tactite in the Carpenter (Swartz) mining district. The rich oxidized silver deposits of the Kingston district are largely fault controlled and a metallizing pluton is not present at the surface outcrop. Some of the silver-bearing base-metal veins in the Kingston district contain rhodochrosite, rhodonite, and alabandite and the highly oxidized parts of these veins have been mined for manganese ore. Very minor amounts of tungsten, as scheelite, occur in thin tactite zones along Tank Canyon, at the Silver Queen claims near Kingston, and at the Silver Tail group of mines along Pierce Canyon.
