These remotely sensed, geographically referenced elevation measurements of lidar-derived seamless (bare-earth and submerged) topography were produced as a collaborative effort between the U.S. Geological Survey (USGS), Coastal and Marine Geology Program (CMGP), St. Petersburg, FL, and the National Aeronautics and Space Administration (NASA), Wallops Flight Facility, VA.

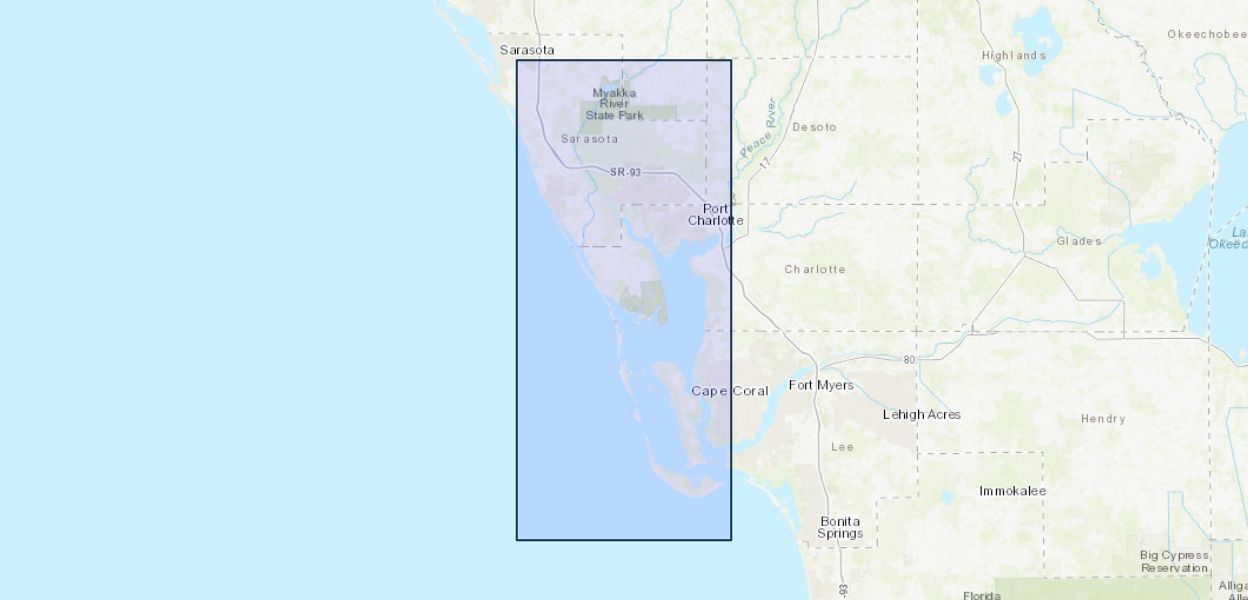

This project provides highly detailed and accurate datasets of a portion of the western Florida coastline beachface, acquired post-Hurricane Charley on August 17 and 18, 2004. The datasets are made available for use as a management tool to research scientists and natural-resource managers. An innovative airborne lidar instrument originally developed at the NASA Wallops Flight Facility, and known as the Experimental Advanced Airborne Research Lidar (EAARL), was used during data acquisition. The EAARL system is a raster-scanning, waveform-resolving, green-wavelength (532-nanometer) lidar designed to map near-shore bathymetry, topography, and vegetation structure simultaneously. The EAARL sensor suite includes the raster-scanning, water-penetrating full-waveform adaptive lidar, a down-looking red-green-blue (RGB) digital camera, a high-resolution multispectral color infrared (CIR) camera, two precision dual-frequency kinematic carrier-phase GPS receivers, and an integrated miniature digital inertial measurement unit, which provide for sub-meter georeferencing of each laser sample. The nominal EAARL platform is a twin-engine Cessna 310 aircraft, but the instrument may be deployed on a range of light aircraft. A single pilot, a lidar operator, and a data analyst constitute the crew for most survey operations. This sensor has the potential to make significant contributions in measuring sub-aerial and submarine coastal topography within cross-environmental surveys.
Elevation measurements were collected over the survey area using the EAARL system, and the resulting data were then processed using the Airborne Lidar Processing System (ALPS), a custom-built processing system developed in a NASA-USGS collaboration. ALPS supports the exploration and processing of lidar data in an interactive or batch mode. Modules for presurvey flight-line definition, flight-path plotting, lidar raster and waveform investigation, and digital camera image playback have been developed. Processing algorithms have been developed to extract the range to the first and last significant return within each waveform. ALPS is used routinely to create maps that represent submerged or sub-aerial topography. Specialized filtering algorithms have been implemented to determine the 'bare earth' under vegetation.
For more information about similar projects, please visit the Decision Support for Coastal Science and Management website.
Brock, J.C., Wright, C.W., Sallenger, A.H., Krabill, W.B., and Swift, R.N., 2002, Basis and methods of NASA airborne topographic mapper Lidar surveys for coastal studies: Journal of Coastal Research, v. 18, no. 1, p. 1-13.
Crane, Michael, Clayton, Tonya, Raabe, Ellen, Stoker, Jason, Handley, Larry, Bawden, Gerald, Morgan, Karen, and Queija, Vivian, 2004, Report of the U.S. Geological Survey Lidar workshop sponsored by the Land Remote Sensing Program and held in St. Petersburg, FL, November 2002: U.S. Geological Survey Open-File Report 2004-1456, 72 p.
Nayegandhi, Amar, Brock, J.C., and Wright, C.W., 2009, Small-footprint, waveform-resolving Lidar estimation of submerged and sub-canopy topography in coastal environments: International Journal of Remote Sensing, v. 30, no. 4, p. 861-878.
Sallenger, A.H., Wright, C.W., and Lillycrop, Jeff, 2005, Coastal impacts of the 2004 hurricanes measured with airborne Lidar; initial results: Shore and Beach, v. 73, nos. 2-3, p. 10-14.
|Title||EAARL coastal topography-western Florida, post-Hurricane Charley, 2004: seamless (bare earth and submerged.|
|Authors||Amar Nayegandhi, Jamie M. Bonisteel, C. Wayne Wright, A. H. Sallenger, John Brock, Xan Yates|
|Publication Subtype||USGS Numbered Series|
|Series Title||Data Series|
|Record Source||USGS Publications Warehouse|
|USGS Organization||Coastal and Marine Geology Program|
