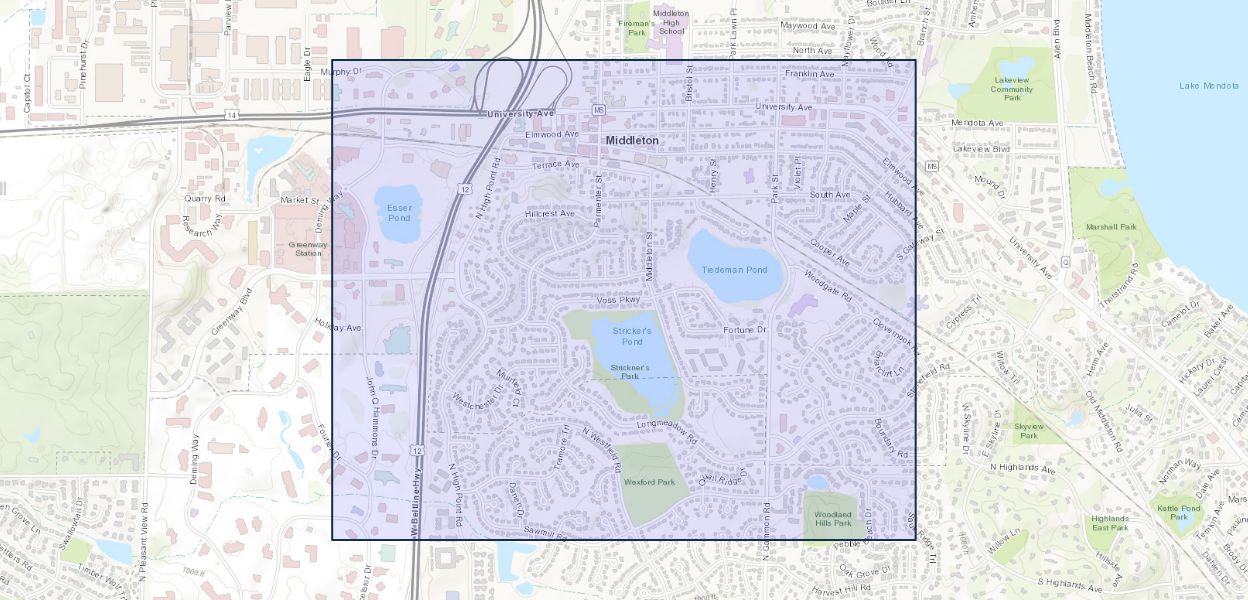

A digital hydrologic model was used to simulate the effects of future residential development on pond inflow volumes and resulting water levels of three ponds in Middleton, Wisconsin. The model computed the daily water budget and the resulting water level for each pond. The results of the model calibration are presented in the report, along with the existing watershed hydrologic conditions and runoff volumes for the 1982 study period. Data was collected during 1982 to claibrate the model; the data included pond stage, ground-water levels, precipitation and other meteorological characteristics. In addition, water-quality samples were collected at each pond to characterize the water quality. Simulation of pond levels with the 1982 rainfall and fully developed watersheds did not result in stages greater than those observed in 1982. Simulation of pond levels with rainfall having a 20-year recurrence interval (1978) and hypothetical, fully developed watersheds resulted in maximum pond stages above those observed in 1982. Peak stage of Tiedeman 's Pond would increase by 2.77 feet, Stricker 's Pond by 3.91 feet, and Esser 's Pond by 1.44 feet. Simulation of pond levels with an estimated 100-year rainfall and hyopthetical, fully developed watersheds would result in peak stage increases of 5.30, 5.32, and 1.97 feet above the peak 1982 observed stages for Tiedeman's, Stricker's, and Esser 's Ponds, respectively. (USGS)
