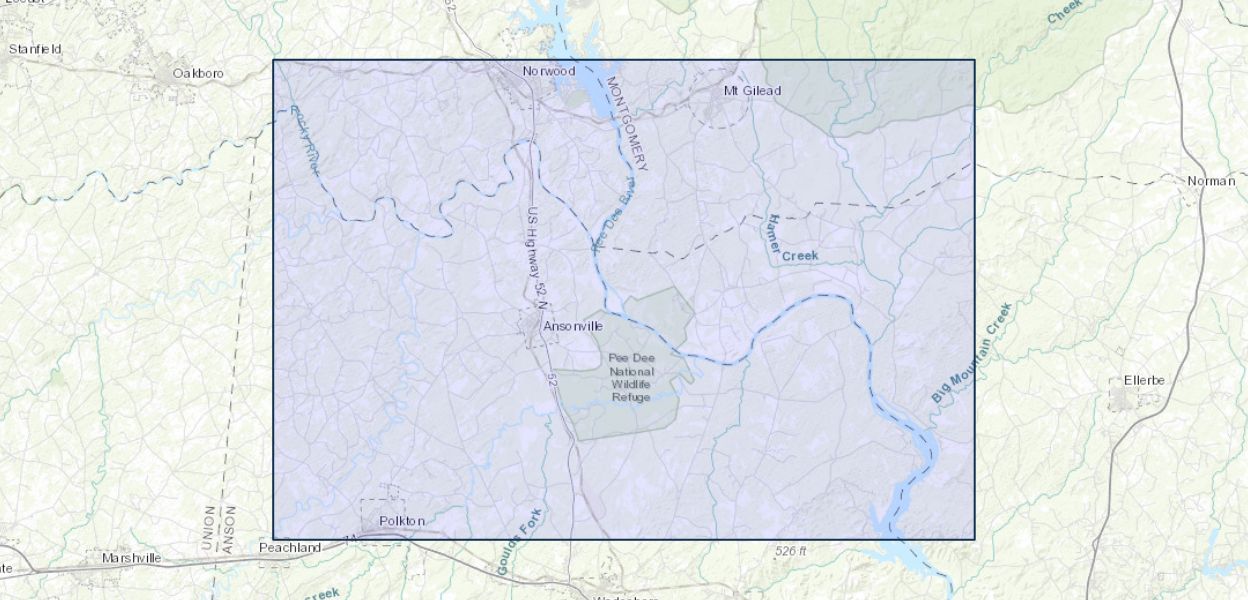

Hydraulic model and flood-inundation maps developed for the Pee Dee National Wildlife Refuge, North Carolina

A one-dimensional step-backwater model was developed by the U.S. Geological Survey (USGS) in cooperation with the U.S. Fish and Wildlife Service, Pee Dee National Wildlife Refuge, North Carolina, to provide a means for predicting flood-plain inundation. The model was developed for selected reaches of the Pee Dee River, Brown Creek, and Rocky River, using the U.S. Army Corps of Engineers Hydrologic Engineering Center River Analysis System (HEC-RAS) software. Multiple cross sections were defined on each modeled stream, and hydrologic data were collected between August 2011 and August 2013 at selected locations on the Pee Dee River and on its tributaries Brown Creek, Rocky River, and Thoroughfare Creek. Cross-section, stage, and flow data were used to develop the model and simulate water-surface profiles at 1.0-foot increments at the USGS streamgage Pee Dee River at Pee Dee Refuge near Ansonville, N.C. The profiles were produced for 31 selected water levels that ranged from approximately 193.0 feet to 223.0 feet in elevation at the Pee Dee River at Pee Dee Refuge streamgage.

A series of digital flood-inundation maps were developed on the basis of the water-surface profiles produced by the model. The inundation maps, which can be accessed through the USGS Flood Inundation Mapping Program Web site at http://water.usgs.gov/osw/flood_inundation, depict estimates of the areal extent and depth of flooding corresponding to selected water levels at the USGS streamgage Pee Dee River at Pee Dee Refuge near Ansonville, N.C. These maps, when combined with real-time water-level information from USGS streamgages, provide managers with critical information to help plan flood-response activities and resource protection efforts.
