Flood-inundation maps for Cedar Creek at 18th Street at Auburn, Indiana

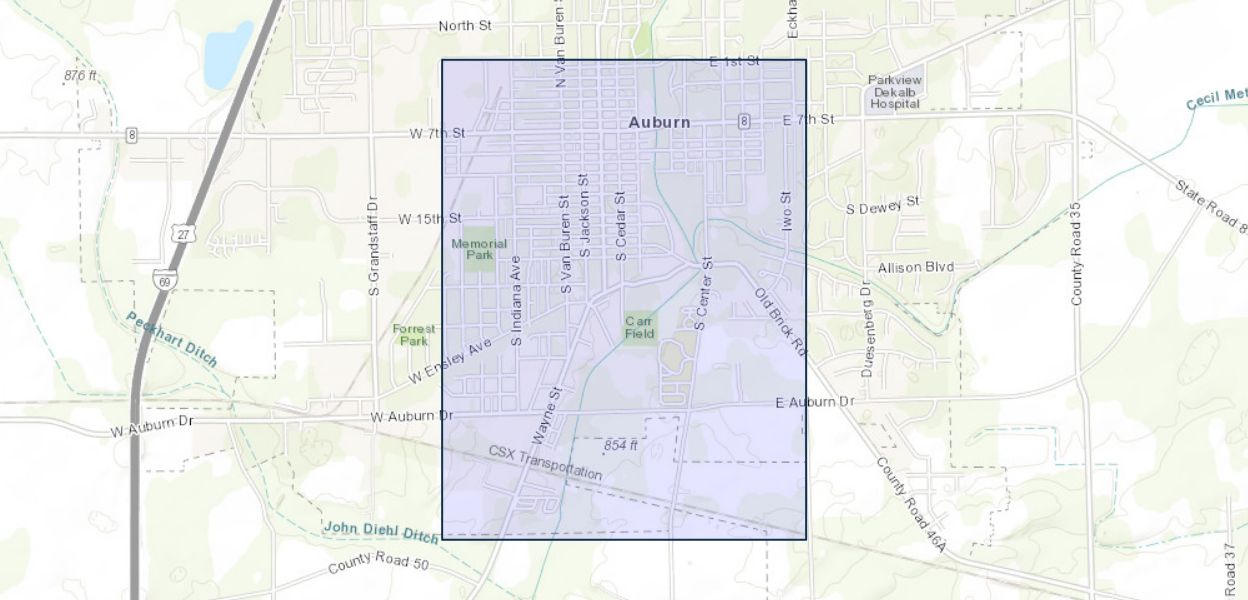

Digital flood-inundation maps for a 1.9-mile reach of Cedar Creek at Auburn, Indiana (Ind.), from the First Street bridge, downstream to the streamgage at 18th Street, then ending approximately 1,100 feet (ft) downstream of the Baltimore and Ohio railroad, were created by the U.S. Geological Survey (USGS) in cooperation with the Indiana Department of Transportation. The flood-inundation maps, which can be accessed through the USGS Flood Inundation Mapping Science web site at https://water.usgs.gov/osw/flood_inundation/, depict estimates of the areal extent and depth of flooding corresponding to selected water levels (stages) at the USGS streamgage on Cedar Creek at 18th Street at Auburn, Ind. (station number 04179520). Near-real-time stages at this streamgage may be obtained from the USGS National Water Information System at https://waterdata.usgs.gov/ or the National Weather Service Advanced Hydrologic Prediction Service at http://water.weather.gov/ahps/, although forecasts of flood hydrographs are not available at this site (ABBI3).

Flood profiles were computed for the stream reach by means of a one-dimensional step-backwater model. The hydraulic model was calibrated by using the most current stage-discharge relation at the Cedar Creek at 18th Street at Auburn, Ind. streamgage and the documented high-water marks from the flood of March 11, 2009. The calibrated hydraulic model was then used to compute seven water-surface profiles for flood stages referenced to the streamgage datum and ranging from 7 ft, or near bankfull, to 13 ft, in 1-foot increments. The simulated water-surface profiles were then combined with a geographic information system digital elevation model (derived from light detection and ranging [lidar] data having a 0.98-ft vertical accuracy and 4.9-ft horizontal resolution) to delineate the area flooded at each water level.

The availability of these maps, along with internet information regarding current stage from the USGS streamgage at Cedar Creek at 18th Street at Auburn, Ind., and stream information from the National Weather Service, will provide emergency management personnel and residents with information that is critical for flood response activities such as evacuations and road closures as well as for postflood recovery efforts.
