Geologic and geophysical maps and volcanic history of the Kelton Pass SE and Monument Peak SW Quadrangles, Box Elder County, Utah

January 1, 2016

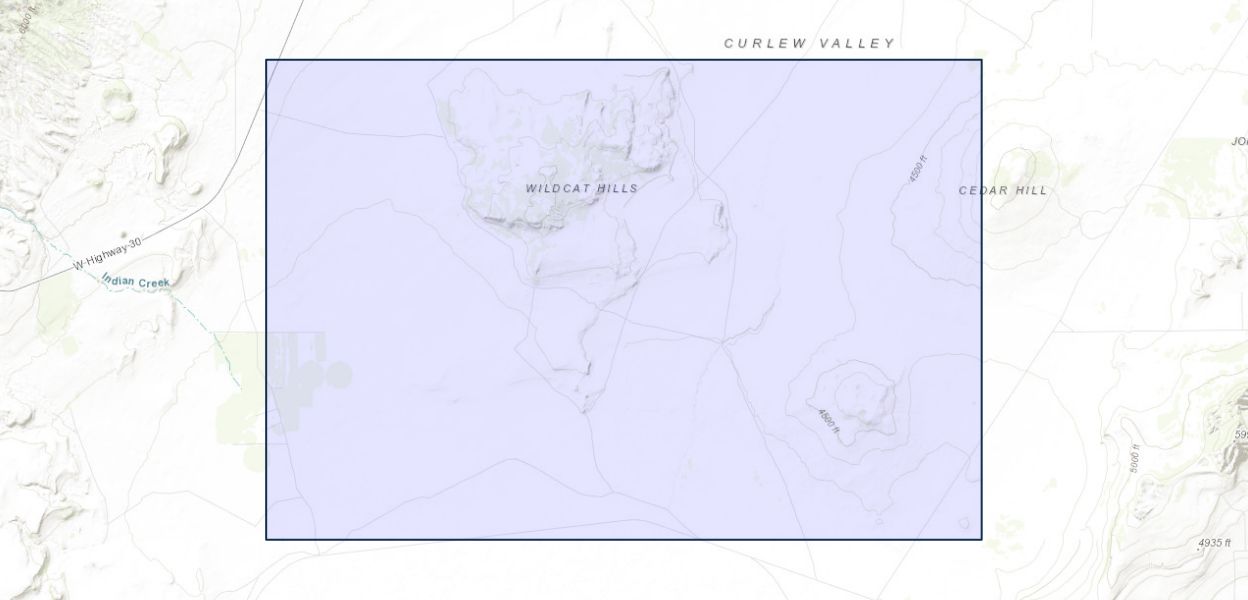

The Kelton Pass SE and Monument Peak SW 7.5' quadrangles are located in Box Elder County, northwestern Utah (figure 1; plate 1). The northern boundary of the map area is 8.5 miles (13.7 km) south of the Utah-Idaho border, and the southern boundary reaches the edge of mud flats at the north end of Great Salt Lake. Elevations range from 4218 feet (1286 m) along the mud flats to 5078 feet (1548 m) in the Wildcat Hills. Deep Creek forms a prominent drainage between the Wildcat Hills and Cedar Hill. The closest towns are the ranching communities of Snowville, Utah (10 miles [16 km] to the northeast) (figure 1), and Park Valley, Utah (10 miles [16 km] to the west).

The Kelton Pass SE and Monument Peak SW 7.5' quadrangles are located entirely within southern Curlew Valley, which drains south into Great Salt Lake, and extends north of the area shown on figure 1 into Idaho. Curlew Valley is bounded on the west by the Raft River Mountains and on the east by the Hansel Mountains (figure 1). Sedimentary and volcanic bedrock exposures within the quadrangles form the Wildcat Hills, Cedar Hill, and informally named Middle Shield (figure 1). Exposed rocks and deposits are Permian to Holocene in age, and include the Permian quartz sandstone and orthoquartzite of the Oquirrh Formation (Pos), tuffaceous sedimentary rocks of the Miocene Salt Lake Formation (Ts), Pliocene basaltic lava flows (Tb) and dacite (Tdw), Pleistocene rhyolite (Qrw) and basalt (Qb), and Pleistocene and Holocene surficial deposits of alluvial, lacustrine, and eolian origin. Structurally, the map area is situated in the northeastern Basin and Range Province, and is inferred to lie within the hanging wall of the late Miocene detachment faults exposed in the Raft River Mountains to the northwest (e.g., Wells, 1992, 2009; figure 1).

This mapping project was undertaken to produce a comprehensive, large-scale geologic map of the Wildcat Hills, as well as to improve understanding of the volcanic and tectonic evolution of southern Curlew Valley. The resultant publication includes a geologic map of the Kelton Pass SE and Monument Peak SW quadrangles (plate 1), two interpretive geologic cross sections (plate 2), new geophysical data and interpretations, and new geochronology data for volcanic units within and near the quadrangles.

Publication Year 2016
Title Geologic and geophysical maps and volcanic history of the Kelton Pass SE and Monument Peak SW Quadrangles, Box Elder County, Utah
Authors Tracey J. Felger, David M. Miller, Victoria E. Langenheim, Robert J. Fleck
Publication Type Report
Publication Subtype State or Local Government Series
Series Title Miscellaneous Publication
Series Number 16-1DM
Index ID 70193404
Record Source USGS Publications Warehouse
USGS Organization Geology and Geophysics Science Center
