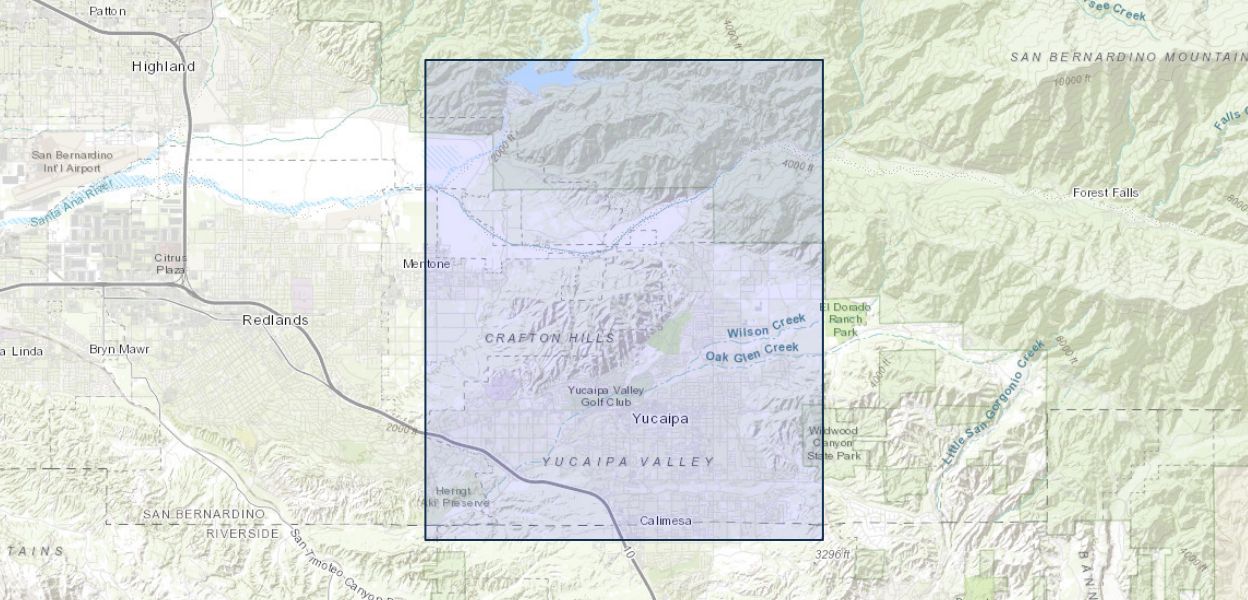

Geologic map and digital database of the Yucaipa 7.5’ quadrangle, San Bernardino and Riverside Counties, California

Introduction

This geologic database of the Yucaipa 7.5' quadrangle was prepared by the Southern California Areal Mapping Project (SCAMP), a regional geologic-mapping project sponsored jointly by the U.S. Geological Survey and the California Geological Survey. The database was developed as a contribution to the National Cooperative Geologic Mapping Program's National Geologic Map Database, and is intended to provide a general geologic setting of the Yucaipa quadrangle. The database and map provide information about earth materials and geologic structures, including faults and folds that have developed in the quadrangle due to complexities in the San Andreas Fault system.

The Yucaipa 7.5' quadrangle contains materials and structures that provide unique insight into the Mesozoic and Cenozoic geologic evolution of southern California. Stratigraphic and structural elements include: (1) strands of the San Andreas Fault that bound far-traveled terranes of crystalline and sedimentary rock; (2) Mesozoic crystalline rocks that form lower and upper plates of the regionwide Vincent-Orocopia Thrust system; and (3) late Tertiary and Quaternary sedimentary materials and geologic structures that formed during the last million years or so and that record complex geologic interactions within the San Andreas Fault system. These materials and the structures that deform them provide the geologic framework for investigations of geologic hazards and ground-water recharge and subsurface flow.

Geologic information contained in the Yucaipa database is general-purpose data that is applicable to land-related investigations in the earth and biological sciences. The term "generalpurpose" means that all geologic-feature classes have minimal information content adequate to characterize their general geologic characteristics and to interpret their general geologic history. However, no single feature class has enough information to definitively characterize its properties and origin. For this reason the database cannot be used for site-specific geologic evaluations, although it can be used to plan and guide investigations at the site-specific level.
