Airborne electromagnetic and magnetic survey data, Stillwater Complex, Montana, May 2000

March 12, 2019

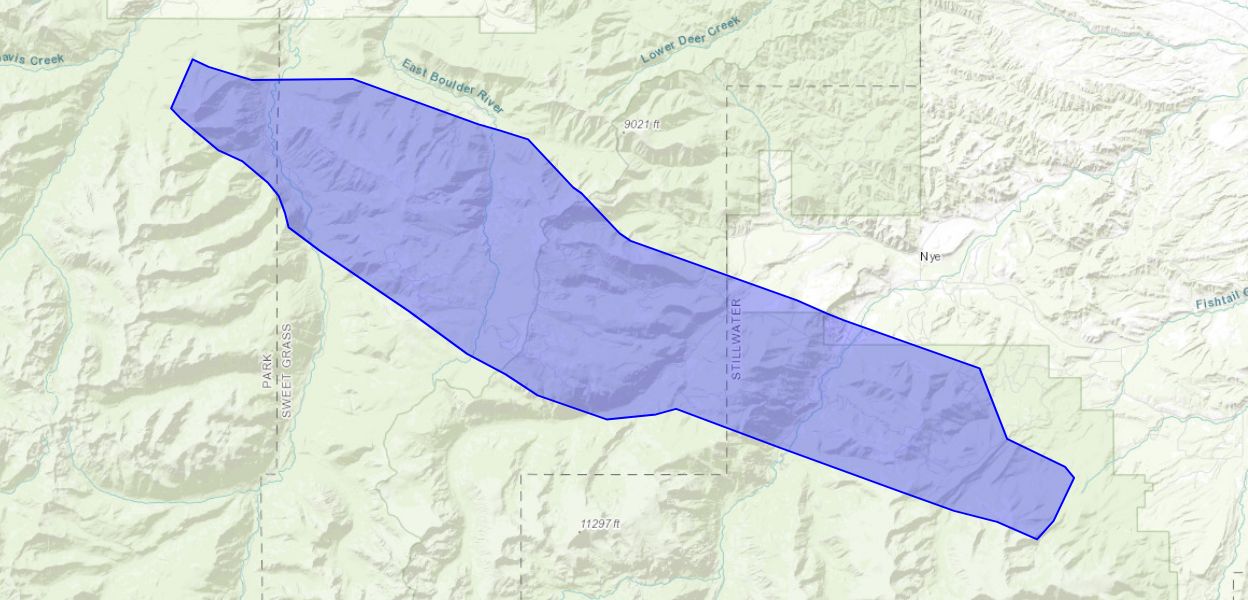

A helicopter-borne electromagnetic/magnetic survey was flown over the Stillwater area, southwest Montana from May 5 to May 16, 2000. The survey was conducted over the Stillwater Igneous Complex, a Precambrian layered mafic-ultramafic intrusion which is characterized by igneous layering. Electromagnetic data were acquired using DIGHEM helicopter-borne electromagnetic system. Magnetic data were collected with optically pumped Cesium Vapor Geometrics G822 magnetometer. Sensor elevation above ground was measured with Honeywell/Sperry AA220 radar. The nominal elevation of the sensor was 60 meters. Survey coverage comprises 1,914 line kilometers, including tie lines. Flight lines were flown in an azimuthal direction of 020 degrees with a nominal line separation of 200 meters. In the southeastern portion of the survey area, in-fill lines were flown for coverage every 100 meters. Two tie lines were flown perpendicular to the flight lines.

Publication Year 2019
Title Airborne electromagnetic and magnetic survey data, Stillwater Complex, Montana, May 2000
DOI 10.5066/P9OLEU17
Authors Heather L Parks, Michaela R Johnson
Product Type Data Release
Record Source USGS Asset Identifier Service (AIS)
USGS Organization Geology, Geophysics, and Geochemistry Science Center
Rights This work is marked with CC0 1.0 Universal
