Geospatial data for object-based high-resolution classification of conifers within the geographic range of the Bi-State Distinct Population Segment of greater sage-grouse in California and Nevada

November 1, 2017

These products were developed to provide scientific and correspondingly spatially explicit information regarding the distribution and abundance of conifers (namely, singleleaf pinyon (Pinus monophylla), Utah juniper (Juniperus osteosperma), and western juniper (Juniperus occidentalis)) in Nevada and portions of northeastern California. Encroachment of these trees into sagebrush ecosystems of the Great Basin can present a threat to populations of greater sage-grouse (Centrocercus urophasianus). These data provide land managers and other interested parties with a high-resolution representation of conifers within the geographic range of the Bi-State Distinct Population Segment of greater sage-grouse that can be used for a variety of management and research applications.

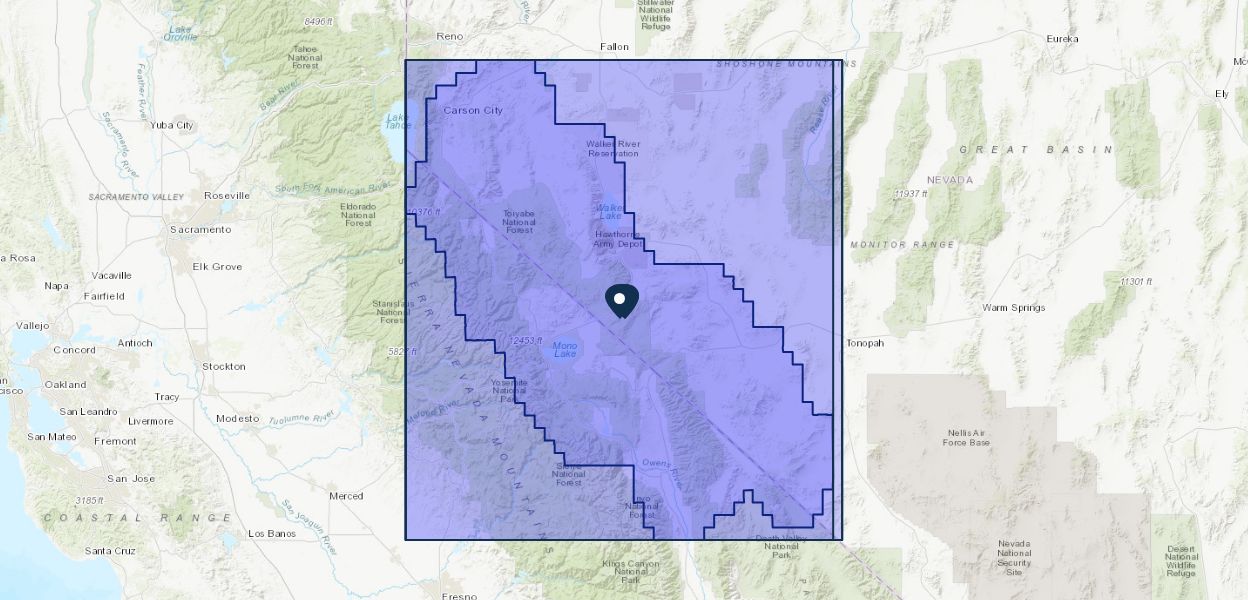

We mapped conifer trees at 1 x 1 meter resolution across the extent of all Nevada Department of Wildlife Bi-State Sage-grouse Population Management Units plus a 10 km buffer. Using 2010 and 2013 National Agriculture Imagery Program digital orthophoto quads (DOQQs) as our reference imagery, we applied object-based image analysis with Feature Analyst software (Overwatch, 2013) to classify conifer features across our study extent. This method relies on machine learning algorithms that extract features from imagery based on their spectral and spatial signatures. Conifers in 702 DOQQs were classified and outputs were then tested for errors of omission and commission using stratified random sampling. Results of the random sampling were used to populate a confusion matrix and calculate the overall map accuracy of 86.96 percent. However, these data have yet to undergo final modifications to correct for hard seamline transitions or serious errors of omission/commission.

We provide 4 sets of products for this mapping process across the entire mapping extent: (1) a shapefile representing accuracy results linked to our mapping subunits; (2) binary rasters representing conifer presence or absence at a 1 x 1 meter resolution; (3) a 30 x 30 meter resolution raster representing percentage of conifer canopy cover within each cell from 0 to 100; and (4) 1 x 1 meter resolution canopy cover classification rasters derived from a 50 meter radius moving window analysis. The latter two products can be reclassified into user-specified bins to meet different management or study objectives, which include approximations for phases of encroachment. These products complement, and in some cases improve upon, existing conifer maps in the western United States, and will help facilitate sage-grouse habitat management and sagebrush ecosystem restoration.

References: Overwatch, 2013, Feature Analyst Version 5.1.2.0 for ArcGIS: Overwatch Systems Ltd., Sterling, VA.

Publication Year 2017
Title Geospatial data for object-based high-resolution classification of conifers within the geographic range of the Bi-State Distinct Population Segment of greater sage-grouse in California and Nevada
DOI 10.5066/F7G15ZRN
Authors Peter S Coates, K. Ben Gustafson, Cali L Roth, Michael P Chenaille, Mark Ricca, Kimberly Mauch, Erika N Sanchez-Chopitea, Travis J Kroger, William M Perry, Michael L Casazza
Product Type Data Release
Record Source USGS Digital Object Identifier Catalog
USGS Organization Western Ecological Research Center - Headquarters
