Geologic map of the Tetilla Peak Quadrangle, Santa Fe and Sandoval counties, New Mexico

February 1, 2002

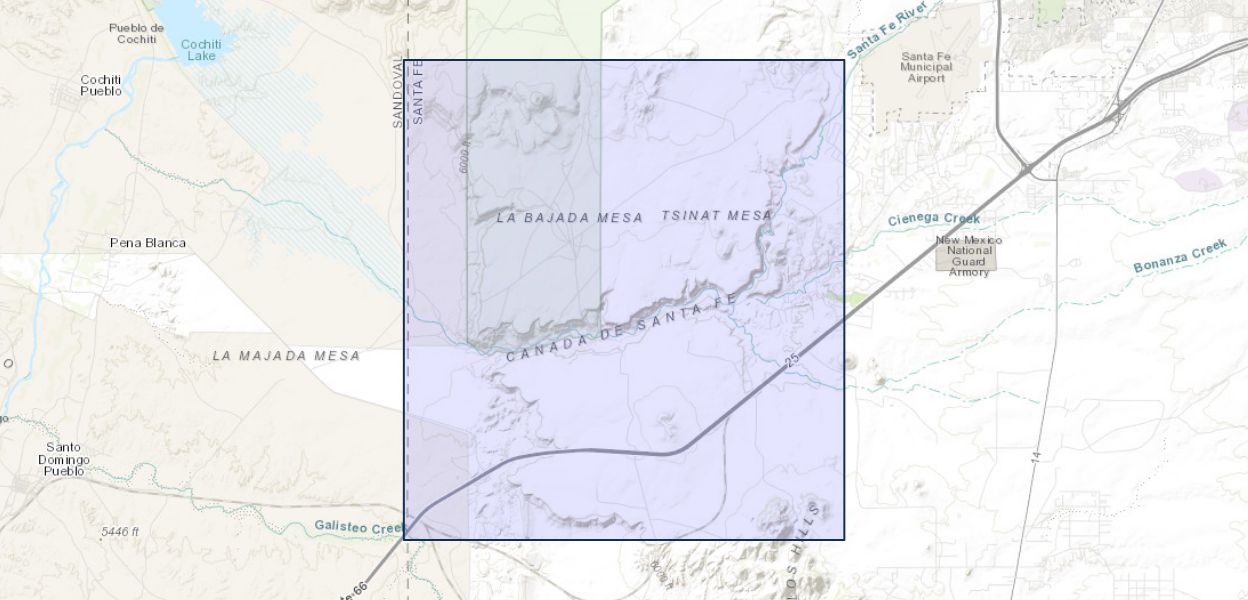

This digital geologic map summarizes all available geologic information for the Tetilla Peak quadrangle located immediately southwest of Santa Fe, New Mexico. The geologic map consists of new polygon (geologic map units) and line (contact, fault, fold axis, dike, flow contact, hachure) data, as well as point data (locations for structural measurements, geochemical and geochronologic data, geophysical soundings, and water wells). The map database has been generated at 1:24,000 scale, and provides significant new geologic information for an area of the southern Cerros del Rio volcanic field, which sits astride the boundary of the Espanola and Santo Domingo basins of the Rio Grande rift.
The quadrangle includes the west part of the village of La Cienega along its eastern border and includes the southeasternmost part of the Cochiti Pueblo reservation along its northwest side. The central part of the quadrangle consists of Santa Fe National Forest and Bureau of Land Management lands, and parts of several Spanish-era land grants.
Interstate 25 cuts through the southern half of the quadrangle between Santa Fe and Santo Domingo Pueblo. Canada de Santa Fe, a major river tributary to the Rio Grande, cuts through the quadrangle, but there is no dirt or paved road along the canyon bottom.
A small abandoned uranium mine (the La Bajada mine) is found in the bottom of the Canada de Santa Fe about 3 km east of the La Bajada fault zone; it has been partially reclaimed.

The surface geology of the Tetilla Peak quadrangle consists predominantly of a thin (1-2 m generally, locally as thick as 10? m) layer of windblown surficial deposits that has been reworked colluvially. Locally, landslide, fluvial, and pediment deposits are also important. These colluvial deposits mantle the principal bedrocks units, which are (from most to least common): (1) basalts, basanites, andesite, and trachyte of the Pliocene (2.7-2.2 Ma) Cerros del Rio volcanic field; (2) unconsolidated deposits of the Santa Fe Group, mainly along the western border, in the hanging wall of the La Bajada fault zone, but locally extending 2-3 km east under the Cerros del Rio volcanic field; (3) older Tertiary volcanic and sedimentary rocks (Abiquiu?, Espinaso, and Galisteo Formations); (4) intrusive rocks of the Cerrillos intrusive center that are roughly coeval with the Espinaso volcanic rocks; and (5) Mesozoic sedimentary rocks ranging in age from the Upper Triassic Chinle Formation to the Upper Cretaceous Mancos Shale.

Publication Year 2002
Title Geologic map of the Tetilla Peak Quadrangle, Santa Fe and Sandoval counties, New Mexico
DOI 10.3133/mf2352
Authors D. A. Sawyer, R. R. Shroba, S. A. Minor, R. A. Thompson
Publication Type Report
Publication Subtype USGS Numbered Series
Series Title Miscellaneous Field Studies Map
Series Number 2352
Index ID mf2352
Record Source USGS Publications Warehouse
