Multi-echo ATV 360

By Water Resources Mission Area
360-degree view of sample multi-echo ATV Data
Original Thumbnail Medium

Detailed Description

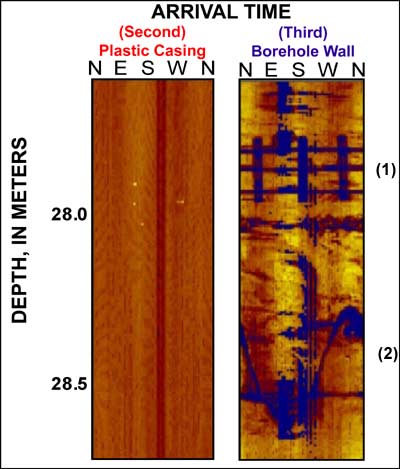

Oriented, 360-degree view of sample multi-echo acoustic televiewer data. The arrival times for the second reflector show the smooth plastic casing. The arrival times of the third reflector indicate the presence of:

  1. A casing centralizer
  2. A fracture behind the casing
