May 2011 New Madrid Floodway

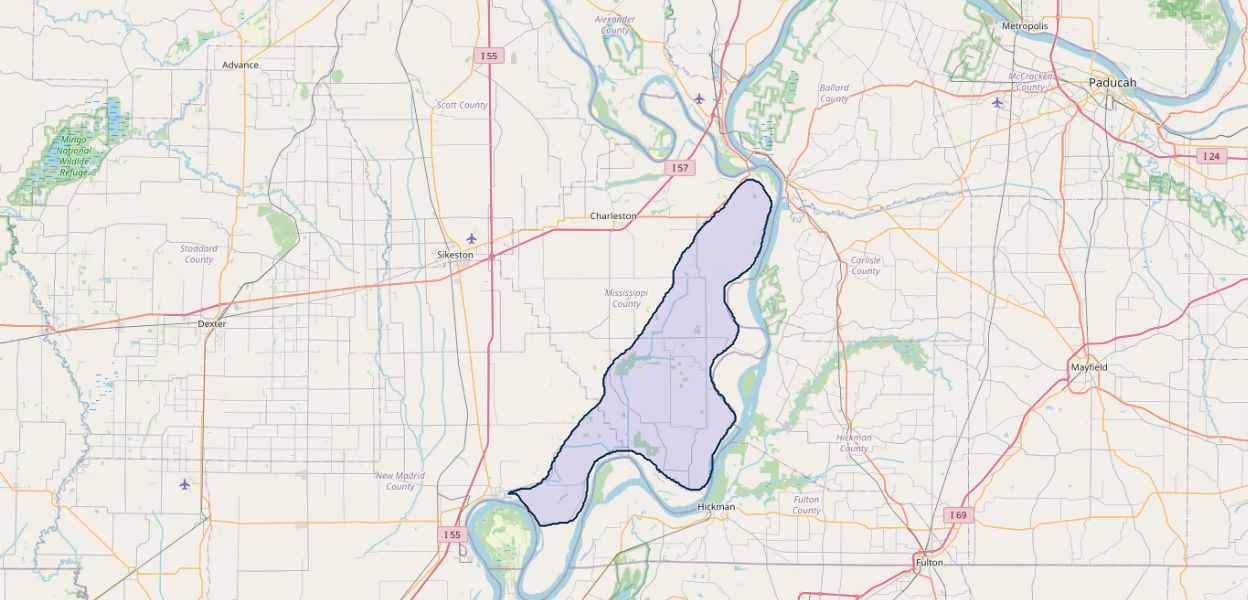

In response to dangerous flood levels near the confluence of the Ohio and Mississippi Rivers, the U.S. Army Corps of Engineers (USACE) activated the Birds Point-New Madrid floodway (New Madrid Floodway in USGS literature) at 10:03 pm on May 2, 2011, by detonating explosives along a stretch of the Mississippi River levee just downstream of Cairo, Illinois. The resulting inflow of water into the 130,000 acre floodway caused the Ohio river stage near Cairo to drop nearly 1/2 foot during the first hour of operation. Two additional inflow/outflow breaches were initiated at 12:40 pm on May 3 and at 2:39 pm on May 5. The USGS provided vital floodway data to the USACE and other agencies.

Media

Sources/Usage: Public Domain. View Media Details

The activation of the floodway, which had not occurred since 1937, provided a rare opportunity to collect a unique dataset describing a flood wave downstream from a levee breach as well as the flow through a large floodway.

Streamflow data

Gage height (stage) hydrographs

Streamflow Measurements near the New Madrid Floodway

Select the station number below to view field discharge measurements made at that monitoring location.

• Ohio River at Metropolis (03611500) - long period of record
• Mississippi River at Thebes (07022000) - long period of record
• Mississippi River above Cairo (370000089122601)
• Ohio River at Cairo (365939089084601)
• Upper Inflow Breach at Birds Point (365659089073101)
• Mississippi River below Ohio confluence (365730089063001)
• Middle Breach (IFOF#1, 363740089180601)
• Combined Outflow (363618089251701)
• Lower Outflow Breach (IFOF#2, 363454089285900)
• Lower Outflow Gap (363524089302700)
• Mississippi River at Tiptonville (362216089303901)

Velocity Maps of the Mississippi River/Ohio River Confluence before and after the breach on May 2, 2011.

Media

Sources/Usage: Public Domain. View Media Details

Media

Sources/Usage: Public Domain. View Media Details

Media

Sources/Usage: Public Domain. View Media Details

Media

Sources/Usage: Public Domain. View Media Details

Media

Sources/Usage: Public Domain. View Media Details

Media

Sources/Usage: Public Domain. View Media Details

Timeline for flood crests

The map below shows the National Weather Service's flood crest predictions along the Mississippi River as of Wednesday, May 4, 2011.

Media

Sources/Usage: Public Domain. View Media Details

Water-quality Measurements

• New Madrid Floodway Combined Outflow (363618089251701)
• New Madrid Floodway Upper Inflow Breach at Birds P (365659089073101)
