Coastal bathymetry and backscatter data collected in 2012 from the Chandeleur Islands, Louisiana

August 13, 2014

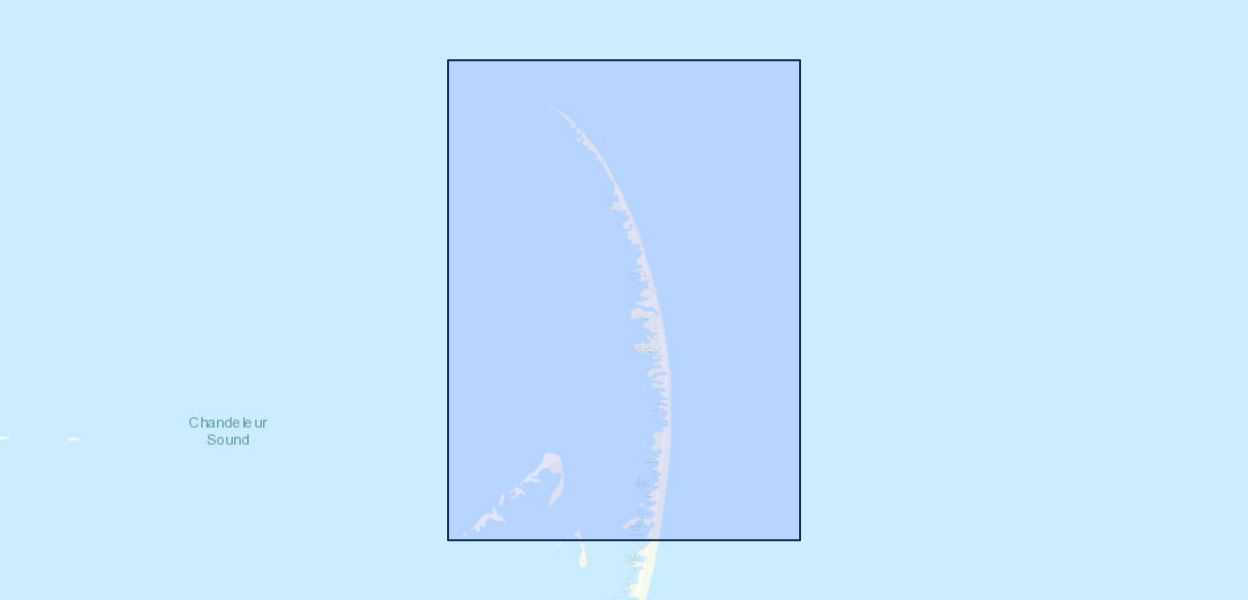

As part of the Barrier Island Evolution Research Project, scientists from the U.S. Geological Survey St. Petersburg Coastal and Marine Science Center conducted nearshore geophysical surveys off the northern Chandeleur Islands, Louisiana, in July and August of 2012. The objective of the study is to better understand barrier island geomorphic evolution, particularly storm-related depositional and erosional processes that shape the islands over annual to interannual timescales (1-5 years). Collecting geophysical data will allow us to identify relationships between the geologic history of the island and its present day morphology and sediment distribution. This mapping effort was the second in a series of three planned surveys in this area. High resolution geophysical data collected in each of 3 consecutive years along this rapidly changing barrier island system will provide a unique time-series dataset that will significantly further the analyses and geomorphological interpretations of this and other coastal systems, improving our understanding of coastal response and evolution over short time scales (1-5 years).

This Data Series report includes the geophysical data that were collected during two cruises (USGS Field Activity Numbers 12BIM03 and 12BIM04) aboard the RV Survey Cat and the RV Twin Vee along the northern portion of the Chandeleur Islands, Breton National Wildlife Refuge, Louisiana. Data were acquired with the following equipment: a Systems Engineering and Assessment, Ltd., SWATHplus interferometric sonar (468 kilohertz (kHz)), an EdgeTech 424 (4-24 kHz) chirp sub-bottom profiling system, and a Knudsen 320BP (210 kHz) echosounder.

This report serves as an archive of processed interferometric swath and single-beam bathymetry data. Geographic information system data products include an interpolated digital elevation model, an acoustic backscatter mosaic, trackline maps, and point data files. Additional files include error analysis maps, Field Activity Collection System logs, and formal Federal Geographic Data Committee metadata.

NOTE: These data are scientific in nature and are not to be used for navigation.

Citation Information

Publication Year 2014
Title Coastal bathymetry and backscatter data collected in 2012 from the Chandeleur Islands, Louisiana
DOI 10.3133/ds847
Authors Nancy T. DeWitt, Julie Bernier, William R. Pfeiffer, Jennifer L. Miselis, B.J. Reynolds, Dana S. Wiese, Kyle W. Kelso
Publication Type Report
Publication Subtype USGS Numbered Series
Series Title Data Series
Series Number 847
Index ID ds847
Record Source USGS Publications Warehouse
USGS Organization St. Petersburg Coastal and Marine Science Center
