Flood-inundation maps for the Little Calumet River from Lansing to South Holland, Illinois, 2020

August 19, 2020

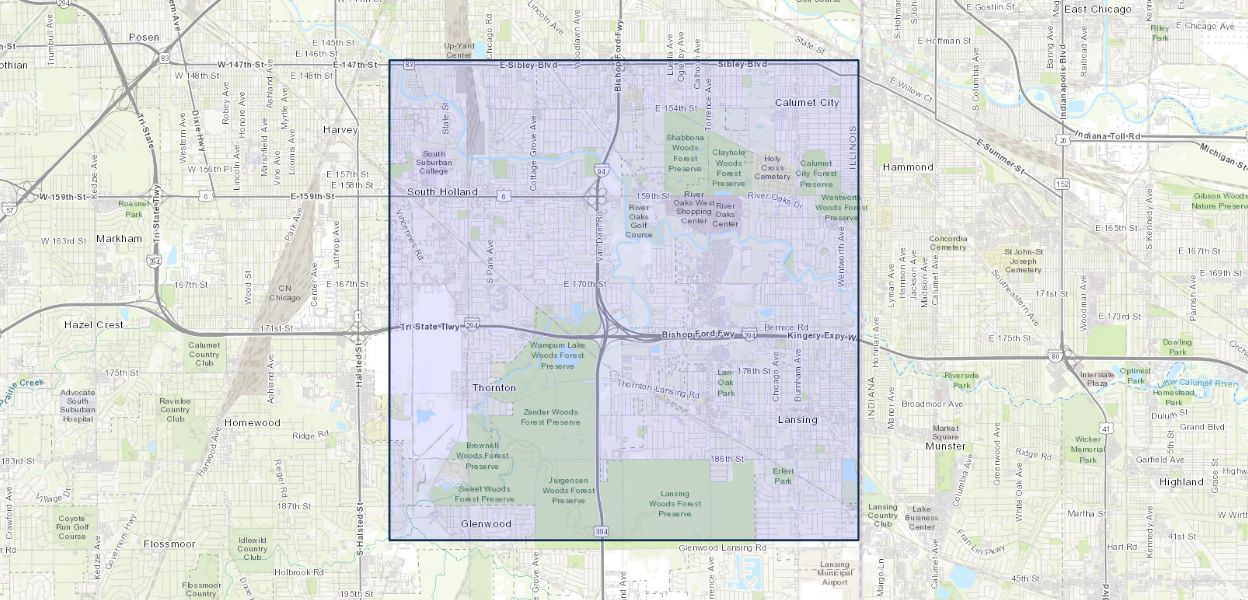

Digital flood-inundation maps for about an 8-mile reach of the Little Calumet River, Illinois, were created by the U.S. Geological Survey (USGS) in cooperation with the U.S. Army Corps of Engineers. The flood-inundation maps, which can be accessed through the USGS Flood Inundation Mapping Science website at, depict estimates of the areal extent and depth of flooding corresponding to selected water levels (stages) at three USGS streamgages: Little Calumet River at South Holland, Ill. (USGS station 05536290); Little Calumet River at Munster, Indiana (USGS station 05536195); and Thorn Creek at Thornton, Ill. (USGS station 05536275). Near-real-time stages at these streamgages may be obtained on the internet from the USGS National Water Information System at or the National Weather Service Advanced Hydrologic Prediction Service at, which also forecasts flood hydrographs at these sites.

Flood profiles were computed for the stream reaches using a one-dimensional unsteady flow step-backwater hydraulic model. The model performance was evaluated using historical streamflow measurements and the most current stage-discharge relations at the USGS streamgages at Little Calumet River at South Holland, Ill.; Little Calumet River at Munster, Ind.; and Thorn Creek at Thornton, Ill. The model was used to compute 24 water-surface profiles at 1-foot intervals referenced to the streamgage datum and ranging from bankfull to about the 0.2-percent annual-exceedance probability flood (500-year recurrence interval flood). The simulated water-surface profiles were then combined with a geographic information system digital elevation model (derived from light detection and ranging data having a 0.6-foot vertical accuracy and a 2-foot horizontal resolution) to delineate the area flooded at each water level.

The availability of these maps, along with internet information regarding current stage from USGS streamgages and forecasted high-flow stages from the National Weather Service, will provide emergency management personnel and residents with information that is critical for flood-response activities such as evacuations and road closures, as well as for postflood recovery efforts.

Publication Year 2020
Title Flood-inundation maps for the Little Calumet River from Lansing to South Holland, Illinois, 2020
DOI 10.3133/sir20205074
Authors Andrew P. Dunn, Timothy D. Straub, Adam E. Manaster
Publication Type Report
Publication Subtype USGS Numbered Series
Series Title Scientific Investigations Report
Series Number 2020-5074
Index ID sir20205074
Record Source USGS Publications Warehouse
USGS Organization Central Midwest Water Science Center
