Geohydrology of Pipe Spring National Monument area, northern Arizona

January 1, 1999

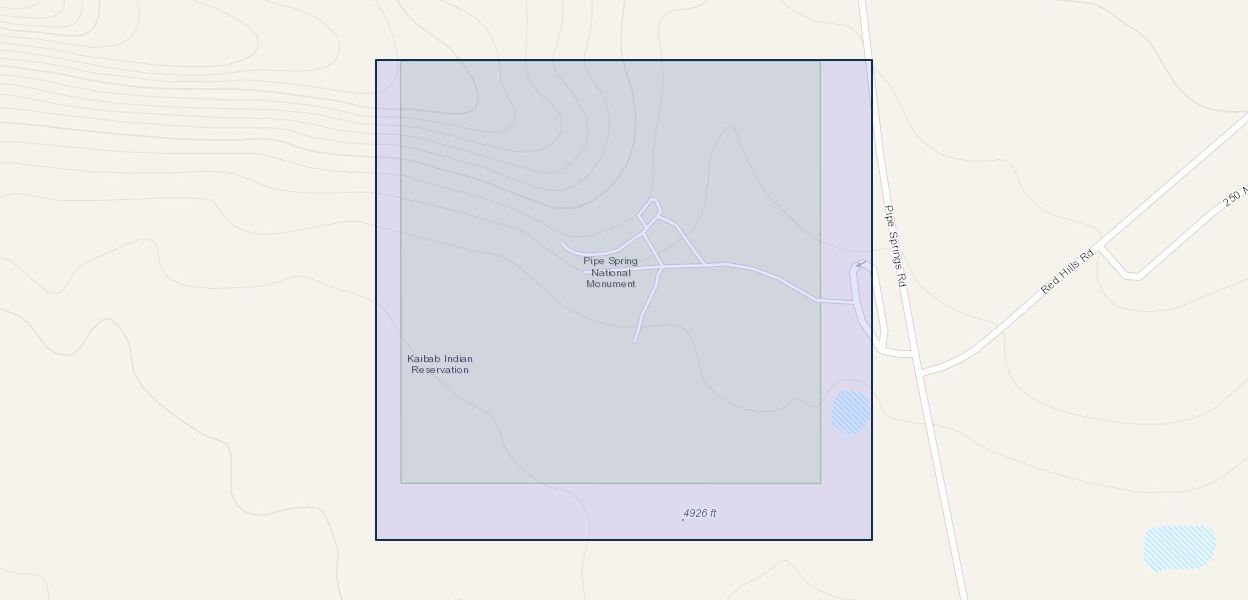

Pipe Spring National Monument is on the Arizona Strip, an area between the Utah border to the north and the north rim of the Grand Canyon to the south. Four springs at the base of Winsor Point on Winsor Mountain (known collectively as Pipe Spring) are a part of the historical significance of the monument. The relation between declining discharges from springs in the monument and ground-water development north of the monument was studied to provide information that could be used for management of the monument resources.
Ground-water elevations from wells indicate that ground-water movement is from north to south along the west side of a branch of Sevier Fault. Faulting in the areas has downthrown permeable water-bearing sediments relative to impermeable sediments and is evinced by cliffs along the western and northern edges and flat-lying areas to the east. The Navajo Sandstone and Kayenta Formation are the primary water-bearing units on the west side of the fault. The semipermeable sediments of the Chinle and Moenkopi Formations on the east side of the fault inhibit ground-water movement from the west to the east side of the fault.
Ground water south of Moccasin Canyon is higher in total dissolved solids than ground water north of Moccasin Canyon. Wells north of Moccasin Canyon are open primarily in the Navajo Sandstone, and wells south of Moccasin Canyon are open primarily in the upper sandstone facies of the Kayenta Formation.
A water-budget estimate for the study area indicates a storage deficit of 780 acre-feet per year. This deficit suggests that some recharge may be occurring outside the study area. Oxygen and hydrogen stable- isotopic data suggest no isotopic variation in recharging waters in the study area and surrounding region. Radiocarbon and tritium activities indicate apparent ground-water ages at wells and springs are between 45 and 9,000 years.

Publication Year 1999
Title Geohydrology of Pipe Spring National Monument area, northern Arizona
DOI 10.3133/wri984263
Authors Margot Truini
Publication Type Report
Publication Subtype USGS Numbered Series
Series Title Water-Resources Investigations Report
Series Number 98-4263
Index ID wri984263
Record Source USGS Publications Warehouse
