High-resolution transboundary vegetation community maps of the Sonoran and Mojave Desert ecoregion to support critical landscape conservation planning and habitat management needs

We produced a 30-m resolution binational land cover map of Bird Conservation Region 33 (BCR 33) for the U.S. North American Bird Conservation Initiative. The region covers large portions of the Sonoran and Mojave Deserts. The map can support the U.S. Fish and Wildlife Service (FWS) Migratory Bird Program’s recovery planning efforts and constitutes the first known binational land cover dataset spanning sections of the United States–Mexico border and using a consistent classification system for both countries. The mapped region includes 152 distinct land cover classes, covering a total area of 38,421,453 ha (148,345 mi²), of which 13,148,345 ha (52,706 mi²) are located in Mexico and 24,770,640 ha (95,639 mi²) in the United States.

We primarily used Landsat 8 (OLI) imagery, supplemented by limited ground surveys from two field campaigns, drone-based aerial data, and existing vegetation classification frameworks from both countries. The classification applied a data-fusion approach integrating 30-m Landsat 8 imagery, decadal phenology metrics from vegetation indices, and a random forest model trained mainly with datasets from a comprehensive national mapping project from the U.S. Geological Survey (USGS) GAP Analysis Project (GAP) and federal wildland fire agencies’ Landscape Fire and Resource Management Planning Tools (LANDFIRE) (GAP/LANDFIRE) [United States side] and the National Institute of Statistics and Geography (INEGI) [Mexico side] as well as land cover maps and opportunistic open-access and field observations.

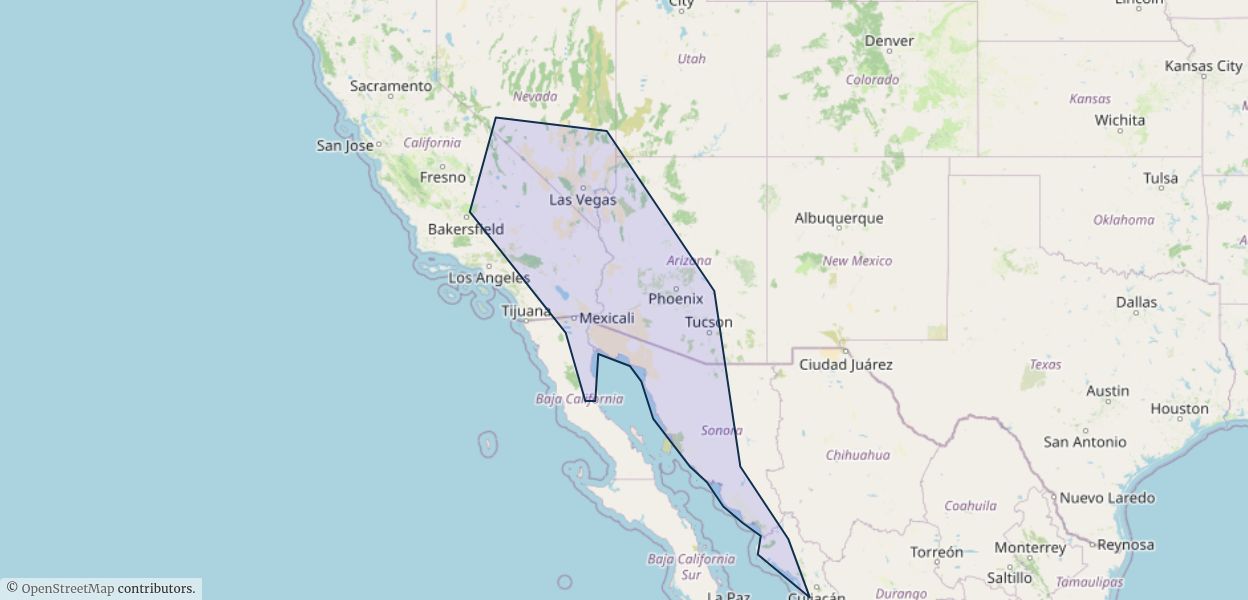

Mapping of the full BCR 33 region was carried out in two phases: 1) Phase I, the prototype map, covered a smaller portion of the transboundary area and identified 31 land cover classes, and 2) Phase II, the full BCR 33 map (refer to Figure 1), which resulted in 152 land cover classes. Using a Random Forest classifier, we achieved an overall prediction accuracy of 92% for the Phase I map and 87% for the Phase II full region map. This slight decrease can be attributed to working on a larger, more complex area with a greater number of land cover classes. No formal validation was conducted, aside from using a subset of the collected field observations and training data to assess model performance during and after training. The training sites were further verified using Google Earth (Google, 2026) imagery. Two undergraduate students who worked for over a year visually inspected imagery and open access public images to confirm each training site during model training using in-house developed, online, visual tools. A portion of this field training data was reserved for model validation, and the corresponding results are to be presented in later sections.

The project developed an end-to-end, medium- and fine-resolution remote sensing–based data fusion mapping approach. This effort produced a map (Nagler et al., 2025) and the online tools to support a dynamic, live, online map for visualizing the transboundary vegetation communities in BCR 33. The toolset is currently hosted by the University of Arizona (UofA) Vegetation Index and Phenology (VIP) Lab to support FWS partners (https://vip.arizona.edu/viplab_data_explorer?LCM_BCR33). The online map is designed to allow rapid updates using new training, validation, or correction data, making it dynamic and maintainable.

The approach we took established a framework for rapid updating and correction of land cover maps, as the model can be quickly retrained with new field observations, updated training data, or other sources. This enables dynamic mapping and change detection of the region’s vegetation. This framework is an advance in data fusion and crowdsourced mapping of complex, vulnerable regions, providing support to regional stakeholders and the wider user community.

This transboundary map can inform the protection, conservation, and restoration of vegetation, habitat, and ecosystems, particularly for threatened and endangered species across the two nations using consistent and harmonized binational mapping systems. Beyond supporting land management decisions and stakeholders in the transboundary desert ecoregions, this BCR 33 mapping effort establishes a foundation for future rapid, low-cost, cross-border land cover mapping that can benefit and advance ecosystem management.
