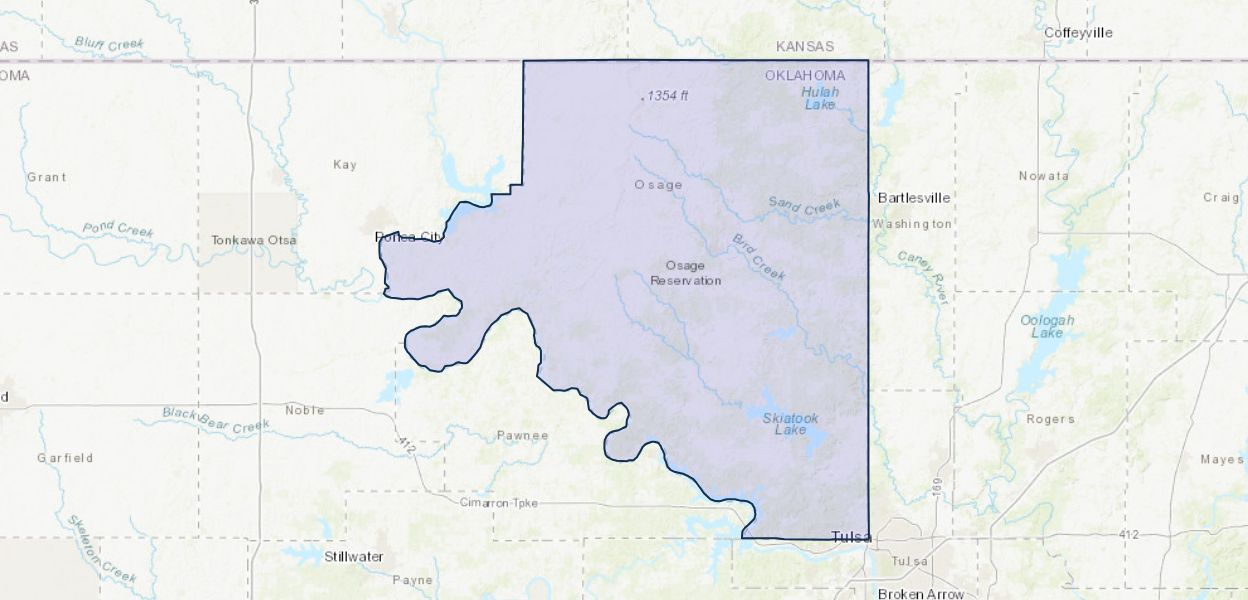

Preliminary geophysical characterization of two oil production sites, Osage County, Oklahoma - Osage Skiatook Petroleum Environmental Research Project

Ground electromagnetic and dc resistivity geophysical surveys were used to interpret the subsurface distribution of salinized soil, water, and bedrock at two sites (A and B) and to characterize the larger scale hydrologic setting. Measurements were made on grids of about 1000 square meters using a very shallow penetrating (less than 10 m) electromagnetic (EM) geophysical system (EM31). At site A, high subsurface conductivities (more than 100 millisiemens per meter) found below disposal ponds extended down the local hydrologic gradient to below the normal level of near by Lake Skiatook. At site B, areas of highest subsurface electrical conductivity were offset about 10 m from the center of salt scars. The area of high subsurface electrical conductivity extends in the subsurface below the normal level of Skiatook Lake. DC resistivity soundings were made in and around the two sites in order to characterize deeper (30-60 m) electrical properties of the subsurface lithology and ground water. These soundings indicate that the tight shale that dominates the local lithology is moderately electrically conductive (5 milliseimems per meter). DC soundings done in several areas at the Skiatook Lake shoreline indicate an electrically conductive (less than 10 millisiemens per meter) zone exists below the shore even away from the oil production sites. This conductive zone may indicate a mixing between fresh lake water and local ground water that has high dissolved solids. Borehole geophysical logs at site B and laboratory rock property measurements are currently being used to refine interpretation of ground geophysical measurements.
