Flood-inundation maps for the White River at Newberry, Indiana

December 13, 2012

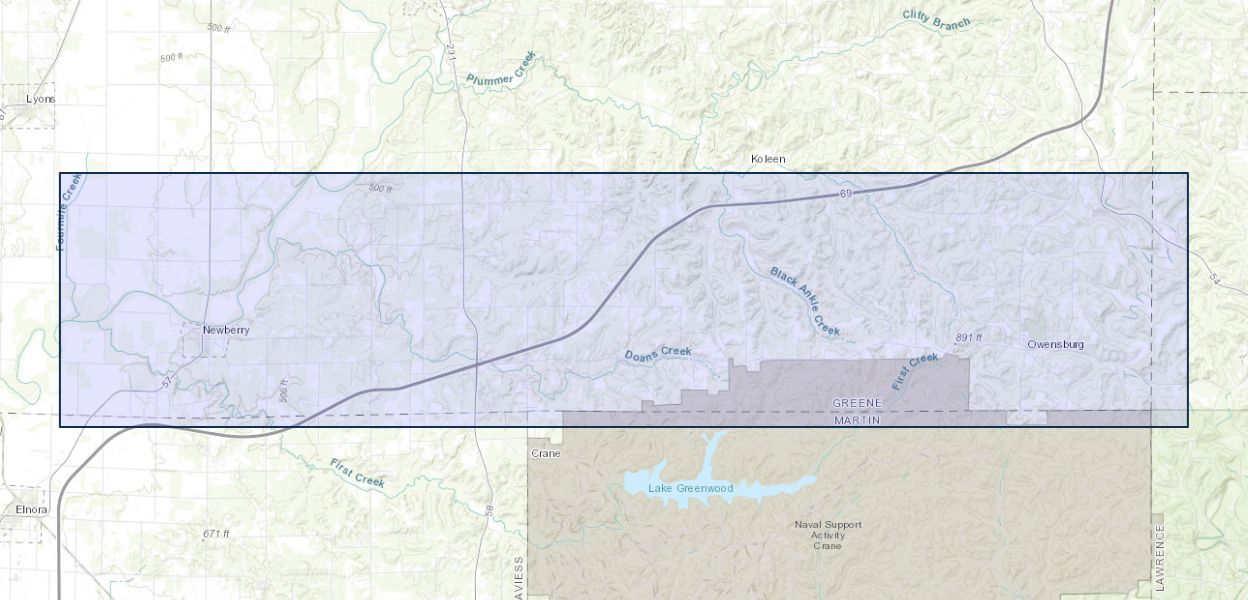

Digital flood-inundation maps for a 4.9-mile reach of the White River at Newberry, Indiana (Ind.), were created by the U.S. Geological Survey (USGS) in cooperation with the Indiana Office of Community and Rural Affairs. The inundation maps, which can be accessed through the USGS Flood Inundation Mapping Science Web site at http://water.usgs.gov/osw/flood_inundation, depict estimates of the areal extent of flooding corresponding to selected water levels (stages) at USGS streamgage 03360500, White River at Newberry, Ind. Current conditions at the USGS streamgage may be obtained on the Internet (http://waterdata.usgs.gov/in/nwis/uv?site_no=03360500). The National Weather Service (NWS) forecasts flood hydrographs at the Newberry streamgage. That forecasted peak-stage information, also available on the Internet, may be used in conjunction with the maps developed in this study to show predicted areas of flood inundation. For this study, flood profiles were computed for the White River reach by means of a one-dimensional step-backwater model developed by the U.S. Army Corps of Engineers. The hydraulic model was calibrated by using the most current stage-discharge relation at USGS streamgage 03360500, White River at Newberry, Ind., and high-water marks from a flood in June 2008.The calibrated hydraulic model was then used to determine 22 water-surface profiles for flood stages a1-foot intervals referenced to the streamgage datum and ranging from bankfull to approximately the highest recorded water level at the streamgage. The simulated water-surface profiles were then combined with a geographic information system digital elevation model (derived from Light Detection and Ranging (LiDAR) data) in order to delineate the area flooded at each water level. The availability of these maps, along with Internet information regarding current stage from the USGS streamgage at Newberry, Ind., and forecasted stream stages from the NWS, provide emergency management personnel and residents with information that is critical for flood response activities such as evacuations and road closures as well as for post-flood recovery efforts.

Publication Year 2012
Title Flood-inundation maps for the White River at Newberry, Indiana
DOI 10.3133/sim3231
Authors Kathleen K. Fowler, Moon H. Kim, Chad D. Menke
Publication Type Report
Publication Subtype USGS Numbered Series
Series Title Scientific Investigations Map
Series Number 3231
Index ID sim3231
Record Source USGS Publications Warehouse
USGS Organization Indiana Water Science Center
