Bathymetric Survey and Storage Capacity of Upper Lake Mary near Flagstaff, Arizona in 2024

The U.S. Geological Survey (USGS), in cooperation with the city of Flagstaff, collected bathymetric, light detection and ranging (lidar), and land- survey data of Upper Lake Mary in Arizona during the months of April and October 2024. The city of Flagstaff uses a combination of groundwater from well fields throughout the Flagstaff area and surface water, mainly from Upper Lake Mary, for its potable water supply. The purpose of the survey is to update previous surveys using new technology and compare the results to previous surveys to determine if there was a decrease in storage capacity that could affect the city’s water supply.
The lakebed was mapped in April 2024 using a vessel equipped with a multibeam echosounder (MBES) and mobile lidar scanner with positioning captured using a real- time kinematic global navigation satellite system (RTK GNSS) base and receivers. In October 2024, areas of the reservoir that were too shallow for the boat and shoreline that were not captured by the vessel- based lidar were surveyed on foot using hand- held RTK GNSS receivers.

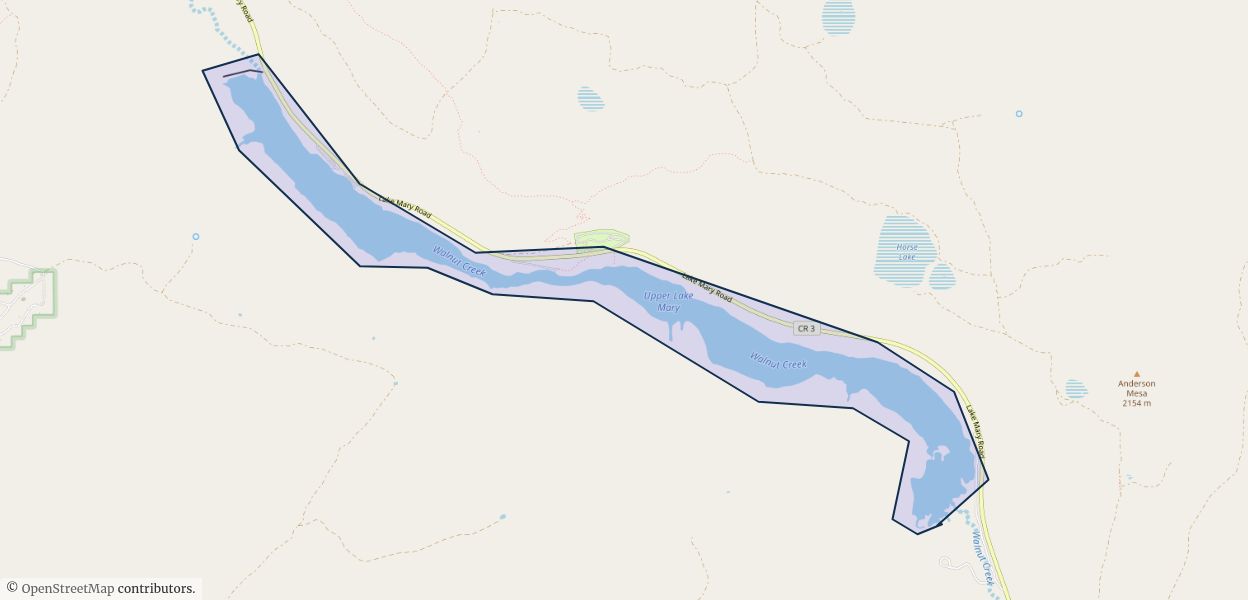

At full pool (spillway elevation of 6,831.82 feet above NAVD 88 [2,082.34 meters (m)], Upper Lake Mary has a storage capacity of 16,449.80 acre- feet (20,290,611.73 cubic meters) and a surface area of 953.57 acres (3,860,926.075 square meters). The reservoir is 5.7 miles (9.7 kilometers) long and varies in width from 326 feet (99.36 m) near the central, narrow portion of the reservoir to 2,613 feet (796.44 m) in the upper portion. Comparisons between this survey and the previous two surveys from the1950s and 2006 indicate no apparent decrease in reservoir area or storage capacity. Results of the 2024 survey indicate that Upper Lake Mary’s storage capacity increased by 0.9 percent from the 2006 survey and a 1.6 percent increase in surface area from the 2006 survey.
