Coal and petroleum resources in the Appalachian basin: index maps of included studies
This chapter B.1 of U.S. Geological Survey (USGS) Professional Paper 1708 provides index maps for many of the studies described in other chapters of the report. Scientists of the USGS and State geological surveys studied coal and petroleum resources in the central and southern Appalachian structural basins. In the southern Appalachian basin, studies focused on the coal-bearing parts of the Black Warrior basin in Alabama. The scientists used new and existing geologic data sets to create a common spatial geologic framework for the fossil-fuel-bearing strata of the central Appalachian basin and the Black Warrior basin in Alabama.
Digital data have been compiled into a geographic information system (GIS) that is included in chapter I.1 (Trippi and others, this volume). Shape files and related metadata for features shown in the index maps of this chapter can be downloaded from chapter I.1.

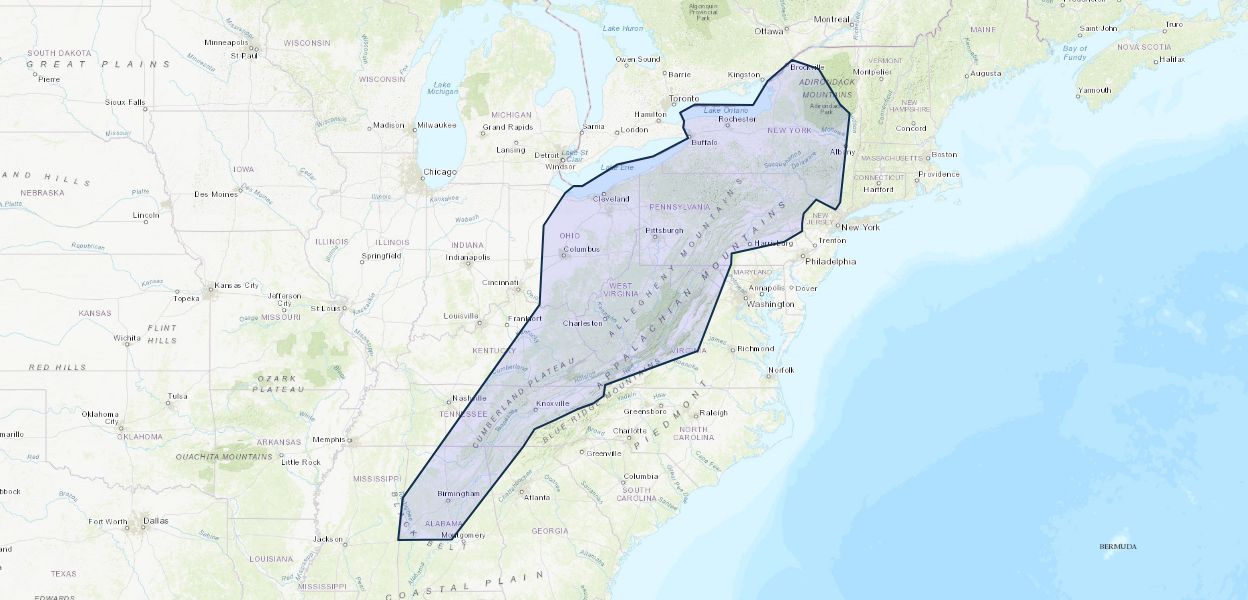

The study area for the Appalachian basin resource framework study includes the fossil-fuel-bearing strata of the following States (listed alphabetically): Alabama, Kentucky, Maryland, New York, Ohio, Pennsylvania, Tennessee, Virginia, and West Virginia. The outline of the study area is shown in figure 1; it differs from the boundary of the Appalachian Basin Province (Province 67) defined for the 1995 National Oil and Gas Assessment (NOGA) by the U.S. Geological Survey (1996a). The difference is that the study area includes regions where the Pennsylvanian coal-bearing strata crop out but does not include all of the oil- and gas-bearing strata of the Black Warrior basin, Alabama.
The reasons for providing the index maps in this chapter are to show the locations of different studies, to give an overview of topics covered, and to help the user choose which chapter to read. Figures 1 and 2 show the study area outline and county names. Figure 3 shows oil and gas production in 1995 and 2005. Figure 4 shows locations of Upper Devonian sandstone oil and gas fields. Figure 5 shows major coal regions and coal fields. Figure 6 shows coal production by county.
Figure 7 shows the locations of 10 cross sections of regional extent through the subsurface of the Appalachian basin. Figure 8 shows conodont alteration index sample locations and interpreted isograds for Ordovician rocks.
Figure 9 shows vitrinite-reflectance data for Pennsylvanian coal in the Appalachian basin. Figure 10 shows the locations of coalbed-methane (CBM) assessment units in the study area, and figure 12 shows counties producing CBM. Figure 12 shows sulfur content of coal delivered to powerplants from coal-producing counties in the Appalachian basin and Black Warrior basin.
Figure 13 shows locations of wells in Ohio and Pennsylvania where oil and gas were sampled in Lower Silurian reservoirs. Figure 14 shows the Conasauga-Rome/Conasauga Total Petroleum System and selected wells in the Rome trough in Kentucky and West Virginia having oil and gas production and shows. Figure 15 shows the locations of samples from Silurian reservoirs in Kentucky, New York, Ohio, Pennsylvania, and West Virginia; the samples yielded total organic carbon data. Figure 16 shows the locations of the Ben Hur and Rose Hill oil fields, Virginia, and the Swan Creek oil field, Tennessee.
The one index map that is not shown is the areal extent of the shale gas plays in the basin. The extents of the plays can be found in Coleman and others (this volume, chap. G.13).
