Helicopter Electromagnetic and Magnetic Geophysical Survey Data for Portions of the North Platte River and Lodgepole Creek, Nebraska, June 2008

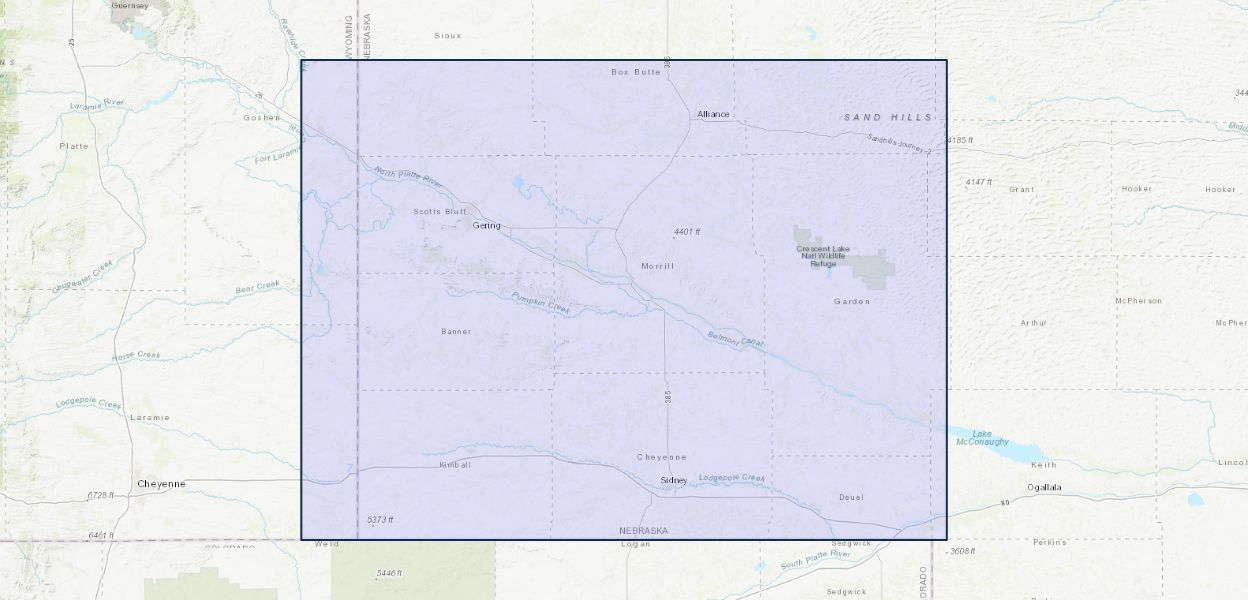

This report is a release of digital data from a helicopter electromagnetic and magnetic survey that was conducted during June 2008 in areas of western Nebraska as part of a joint hydrologic study by the North Platte Natural Resource District, South Platte Natural Resource District, and U.S. Geological Survey. The objective of the contracted survey, conducted by Fugro Airborne, Ltd., was to improve the understanding of the relationship between surface water and groundwater systems critical to developing groundwater models used in management programs for water resources. The survey covered 1,375 line km (854 line mi). A unique aspect of this survey is the flight line layout. One set of flight lines were flown paralleling each side of the east-west trending North Platte River and Lodgepole Creek. The survey also included widely separated (10 km) perpendicular north-south lines. The success of this survey design depended on a well understood regional hydrogeologic framework and model developed by the Cooperative Hydrologic Study of the Platte River Basin. Resistivity variations along lines could be related to this framework. In addition to these lines, more traditional surveys consisting of parallel flight lines separated by about 270 m were carried out for one block in each of the drainages. These surveys helped to establish the spatial variations of the resistivity of hydrostratigraphic units. The electromagnetic equipment consisted of six different coil-pair orientations that measured resistivity at separated frequencies from about 400 Hz to about 140,000 Hz. The electromagnetic data along flight lines were converted to electrical resistivity. The resulting line data were converted to geo-referenced grids and maps which are included with this report. In addition to the electromagnetic data, total field magnetic data and digital elevation data were collected. Data released in this report consist of data along flight lines, digital grids, and digital maps of the apparent resistivity and total magnetic field. The depth range of the subsurface investigation for the electromagnetic survey (estimated as deep as 60 m) is comparable to the depth of shallow aquifers. The geophysical data and hydrologic information from U.S. Geological Survey and cooperator studies are being used by resource managers to develop groundwater resource plans for the area. In addition, data will be used to refine hydrologic models in western Nebraska.
