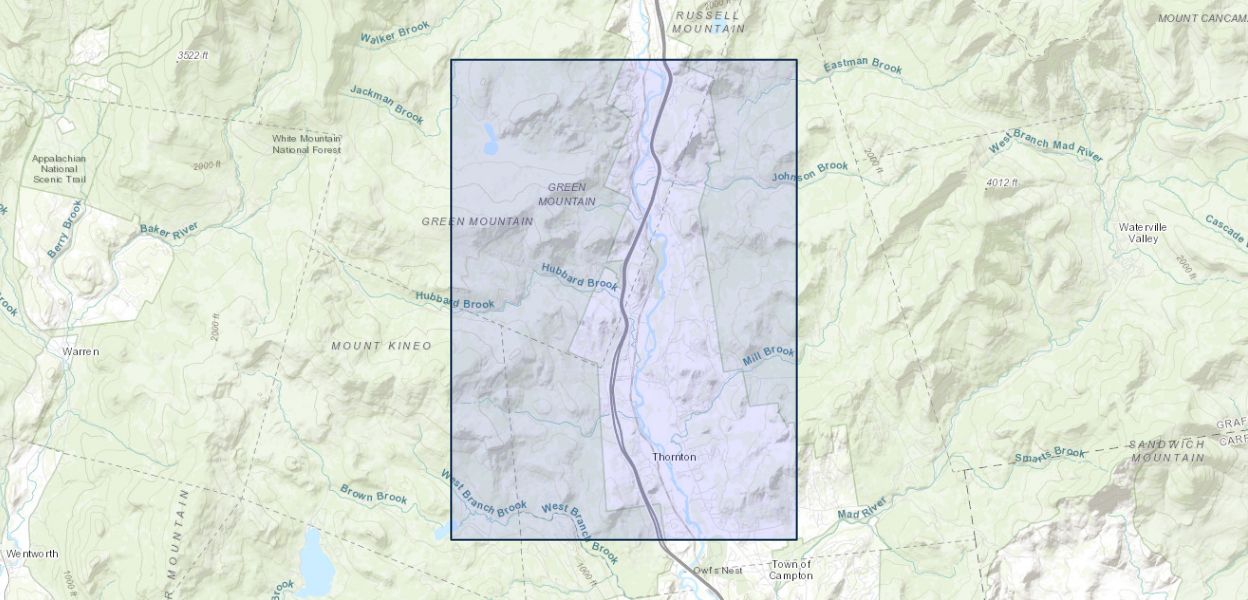

Bedrock geologic map of the Woodstock quadrangle, Grafton County, New Hampshire

The bedrock geology of the Woodstock 7.5-minute quadrangle consists of highly deformed metasedimentary rocks of the Central Maine trough, including the Silurian Rangeley and Perry Mountain Formations and the Devonian Littleton Formation. The central, northern, and eastern parts of the quadrangle are underlain by the oldest rocks in the area, the Rangeley Formation. In the southwest and south-central part of the quadrangle, metaturbidites of the Perry Mountain Formation and subsequent Littleton Formation overly the Rangeley Formation in a deformed F₁ synform, herein informally called the Bagley Brook basin. The metasedimentary rocks were intruded by widespread syn- to post-tectonic granitoids of the Devonian New Hampshire Plutonic Suite and minor post-metamorphic Jurassic-Cretaceous mafic dikes of the White Mountain Plutonic-Volcanic Suite. The metasedimentary rocks were affected by at least two episodes of deformation in the Devonian Acadian orogeny. The dominant regional foliation is second-generation (S₂/D₂) and formed during the development of sillimanite-muscovite mineral assemblages. Large bodies of the Early Devonian Kinsman Granodiorite intruded the metasedimentary rocks semi-concordantly during D₂ deformation. Dikes of the Late Devonian Concord Granite cut the Kinsman Granodiorite and the metasedimentary rocks and were emplaced either syn- or post-D₂. The map pattern in the Rangeley Formation is dominated by northeast to northwest trending, moderately to steeply north-dipping F₂ and F₃ folds. Map-scale F₁ folds are defined by the Bagley Brook basin. Previous division of Rangeley Formation stratigraphy in this region into “upper” and “lower” parts was not corroborated by 1:24,000-scale mapping of lithodemic units, and rocks previously mapped as part of the Smalls Falls and Madrid Formations are here reassigned to the Rangeley Formation. Some rocks previously mapped as the lower part of the Littleton Formation are now assigned to the Perry Mountain Formation. The Littleton Formation on this map is approximately equivalent to rocks previously mapped as the upper part of the same formation.

Steeply dipping fractures in the quadrangle show a preferred northeast orientation, consistent with subsurface fracture orientations in the well fields near Mirror Lake. Jurassic-Cretaceous mafic dikes and normal faults show preferred northeast orientations, similar to the fractures, suggesting that the extensional stress field that controlled dike orientation during the Mesozoic also produced the dominant brittle fabrics in the area.
