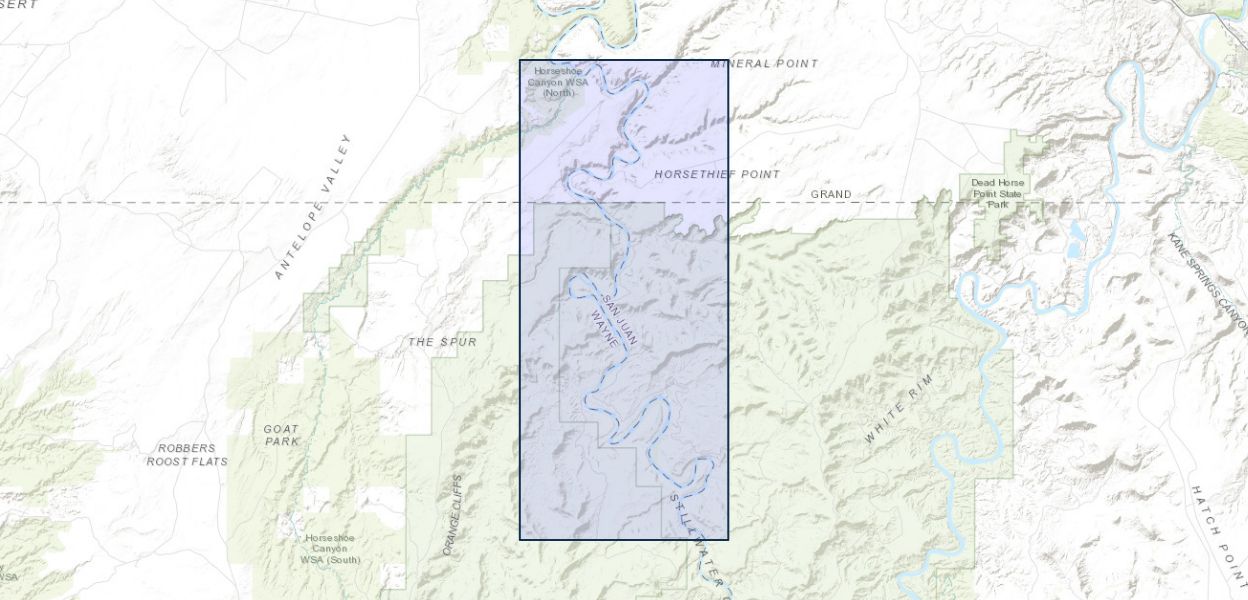

Channel narrowing data for the lower Green River in the Canyonlands region, Utah, USA
March 12, 2020
The 'Channel Width' shapefile data are measurements of the active channel width of the Green River at 1-km intervals in and near Canyonlands National Park, Utah. The active channel was defined as the area of the wetted, or inundated, channel as visible on aerial photographs plus the area of bare (free of vegetation) sand and gravel bars. The active channel for each aerial photograph series was hand digitized on a computer screen in ArcGIS version 9.2. The 'Mineral Bottom' csv data are river channel cross-sections for a 3-km study reach of the Green River upstream from Mineral Bottom, Utah. The study reach is near the mouth of Hell Roaring Canyon, 5 km upstream from the Mineral Bottom boat ramp, which is 85 km upstream from the confluence of the Green River with the Colorado River. Six cross-sections were originally established by the U.S. Fish and Wildlife Service in June 1995. Additional cross-sections were added by Utah State University in August 1995. A subset of the cross-sections (where original monuments were found) were re-surveyed by the U.S. Geological Survey Grand Canyon Monitoring and Research Center in cooperation with Utah State University in June 2015. These raster data are aerial images and digital elevation models (DEMs) for segments of the Green River in and near Canyonlands National Park, Utah. The aerial images depict the river channel and adjacent floodplains for most of the corridor of the Green River in Canyonlands National Park. The images were aquired from public sources and orthorectified and mosaiced for this study. The DEMs cover the river channel and adjacent floodplain for the Fort Bottom segment of the Green River within Canyonlands National Park and included both bathymetric and topographic data. The bathymetric data were collected by the U.S. Geological Survey Grand Canyon Monitoring and Research Center with funding provided by the National Park Service. The topographic data are airborne lidar data that were collected for the state of Utah by a contractor.
Citation Information
Publication Year | 2020 |
---|---|
Title | Channel narrowing data for the lower Green River in the Canyonlands region, Utah, USA |
DOI | 10.5066/P9RNMPLN |
Authors | Alexander E. Walker, Paul E Grams, John C. Schmidt, Keith Kohl |
Product Type | Data Release |
Record Source | USGS Asset Identifier Service (AIS) |
USGS Organization | Southwest Biological Science Center - Flagstaff, AZ, Headquarters |
Rights | This work is marked with CC0 1.0 Universal |
Related
Channel narrowing by inset floodplain formation of the lower Green River in the Canyonlands region, Utah
The lower Green River episodically narrowed between the mid-1930s and present day through deposition of new floodplains within a wider channel that had been established and/or maintained during the early twentieth century pluvial period. Comparison of air photos spanning a 74-yr period (1940−2014) and covering a 61 km study area shows that the channel narrowed by 12% from 138 ± 3.4 m to...
Authors
Alexander E. Walker, Johnnie N. Moore, Paul E. Grams, David Dean, John C. Schmidt
