Methods of Measuring Land Motion

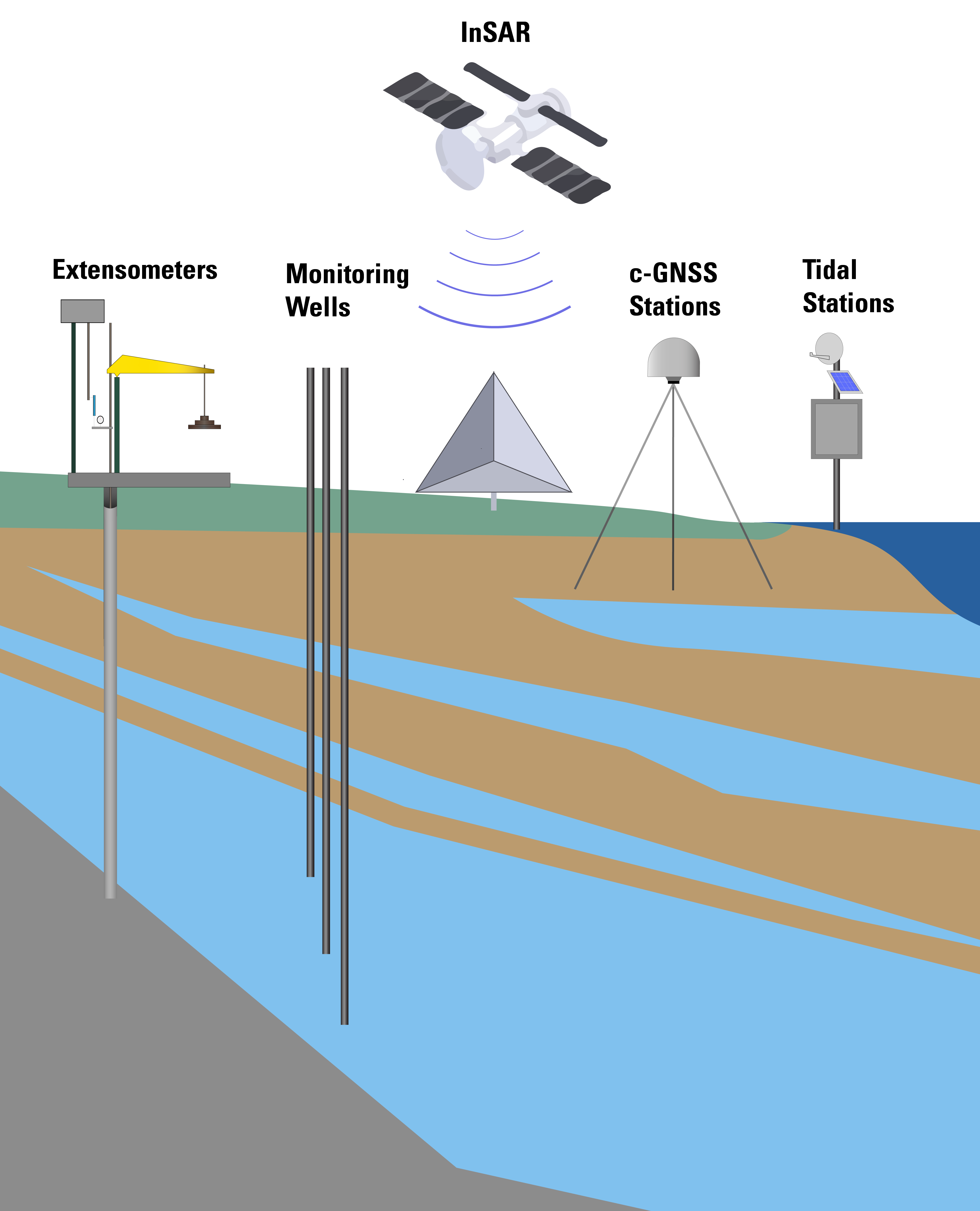

A representation of the various methods used by the USGS to measure subsidence.

Borehole extensometers measure the expansion or compaction of an aquifer system. These measurements are independent from other vertical land movements that might occur deeper in the earth's crust, such as tectonics or glacial isostacy. Extensometers record changes in the distance between the land surface and the bedrock at the bottom of the monitored aquifer. Extensometers are one of the most accurate instruments for measuring aquifer compaction, but they can only measure compaction at a single location. In addition, drilling and installing new extensometers can be a large undertaking. Extensometers are most useful in locations where very precise and accurate measurements are needed, such as subsidence hotspots, and can be used to calibrate and check the accuracy of other forms of land subsidence monitoring.

Groundwater Monitoring Wells measure the water level in unconfined aquifers, and the potentiometric surface in confined aquifers. Confined aquifers that are over-exploited and which have low water pressure are vulnerable to aquifer compaction, which can lead to subsidence. While groundwater monitoring alone can't tell us anything about land motion, it is important to identify areas with high groundwater drawdown rates so that they can be monitored for subsidence. In addition, when groundwater levels are monitored in conjunction with other forms of subsidence monitoring such as extensometers, researchers can gather more information about whether or not aquifer compaction is a major factor.

InSAR uses radar to measure land elevation over a large area. By comparing the elevation recorded by an InSAR satellite at two different times, we can determine how much the land surface moved. InSAR has limitations. Dense vegetation and high humidity can scatter radar signals, decreasing data accuracy, so InSAR is best used in dry environments that are free of vegetation. Special InSAR corner reflectors can be used to reduce the error associated with this technique.

c-GNSS refers to the use of Global Navigation Satellite Systems (GNSS) to record the exact coordinates of a specific fixed location continuously over a period of time. As the ground moves up or down, the system records these changes. Unlike traditional geodetic surveying, c-GNSS produces a continuous record of changes in ground surface elevation. Unlike extensometers, c-GNSS measures the total movement of land surface, including motion due to aquifer compaction, deep earth processes, and surface processes.

Tidal stations continuously measure current sea level and help us understand how sea level may be rising at different rates in different regions (relative sea level rise). By averaging the measured sea level over long periods of time, accurate sea-level elevation can be obtained. Long term monitoring negates the effects of tides, waves, and other short-term fluctuations.
